• -35%

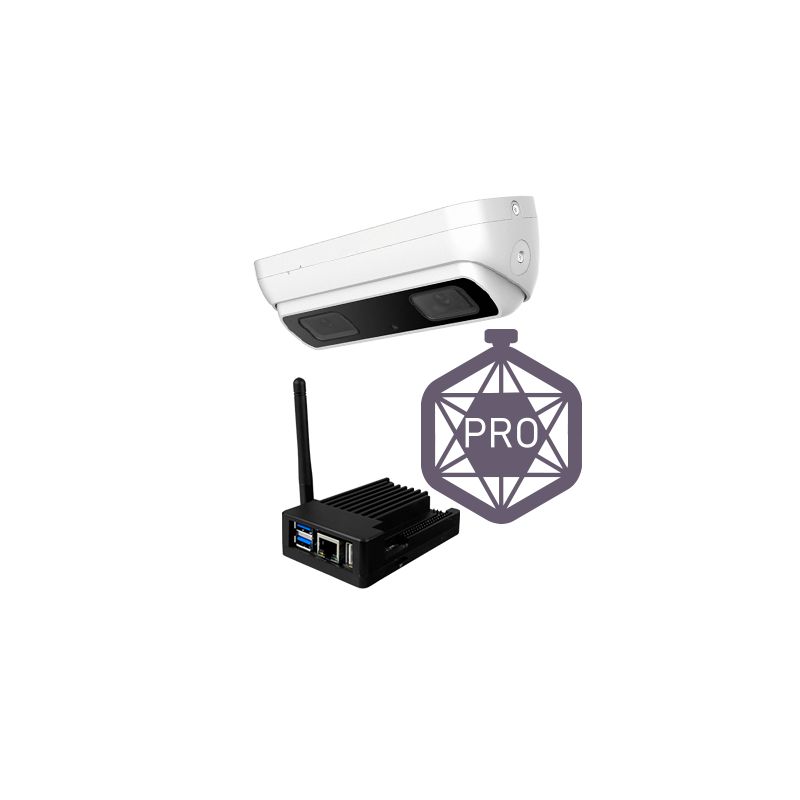

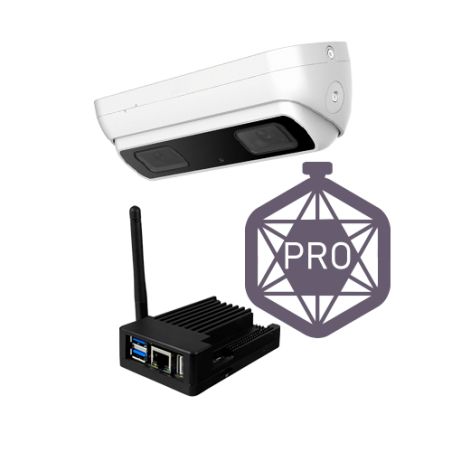

Safire KIT-PEOPLECOUNT-1PRO - Safire Kit para Control de aforo Multi-Estancia,…
search
  • Safire KIT-PEOPLECOUNT-1PRO - Safire Kit para Control de aforo Multi-Estancia,…

Safire KIT-PEOPLECOUNT-1PRO - Multi-Stance Capacity Control Kit, Camera…

Multi-Stance Capacity Control Kit - Camera IPCOUNT-3D-EXT-0280 - PC with SF-COUNT-MULTIROOM software - Multiple viewers at the entrances - Customized reports - Multi-channel system up to 100 cameras
€2,015.00 €3,100.00 Save 35%
Tax included
Reference KIT-PEOPLECOUNT-1PRO
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire KIT-PEOPLECOUNT-1PRO - Safire Kit para Control de aforo Multi-Estancia,…

Safire KIT-PEOPLECOUNT-1PRO - Multi-Stance Capacity Control Kit, Camera…

€2,015.00 €3,100.00 Save 35%

You might also like

  • Full Capacity Control Kit in 1 Multi-Stance
  • People counting camera IPCOUNT-3D-EXT-0280
  • PC with installed SF-COUNT-PRO software
  • Capacity control up to 20 rooms
  • Multi-channel system up to 100 people counting cameras (Expandable)
  • Capacity per camera, floor, room or in total
  • Hourly, daily, monthly and yearly statistical reports
  • Multiple viewers on different devices via web server
  • Sound and visual notification on the screen when the permitted capacity is reached
  • Fully centralized

Features

  • Multi-Stance Capacity Control Kit
  • Camera IPCOUNT-3D-EXT-0280
  • PC with SF-COUNT-MULTIROOM software
  • Multiple viewers at the entrances
  • Customized reports
  • Multi-channel system up to 100 cameras

Specs

IP camera
Model IPCOUNT-3D-EXT-0280
Image sensor 1/2.8” Progressive Scan CMOS
Maximum resolution 3 Mpx
Main Stream rate 2048 x 1536
Compression H.265+ / H265 / H.264+ / H.264
Day / Night Auto / Programmable / Manual
Infrared Illumination 20 m
Bitrate 3 Kbps ~ 16 Mbps
Lens 2.8 mm (H: 96º, V: 70º)
Functions 3D-DNR, BLC, DWDR
Communication interface 1 x Ethernet 10/100M BaseT
Alarms 2 input / 2 output (Supports up to 30 VDC, 1 A / 50 VDC, 0.5 A)
Audio 2 IN / 1 OUT
People counting Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports
Other functions Height Filter | Door Status Indicator
Remote access Web Browser, Smartphone App and Capacity Control Software
Interoperability ONVIF
Power DC 12 V / 600 mA, PoE (IEEE802.3af)
Temp. operation -40º C ~ +60º C
Degree of protection Interior
Material Body: Metallic
Dimensions 61.5 (H) x 204 (W) x 78 (D) mm
Base dimensions 42 x 65 mm / 4 screws
Weight 810 g

Software
Model SF-COUNT-PRO (Safire Doors Pro)
Capacity Control Control over 20 occupancies
Cameras Up to 100 people counting cameras (Supports Safire, Uniview and X-Security devices)
Display Via web browser. Unlimited devices and independent image on each device.
Reports Personalized. Ability to download reports in Excel file
Other Customizable notifications and logos. 3 user levels: Administrator, Supervisor and Operator. Remote Update.

PC
CPU 6-core
Memory 4GB LPDDR4
Communication 1xGigabit Ethernet, Wifi 5 (802.11ac dual band), Bluetooth 5.0, USB 3.0, USB 2.0, USB 3.0 (Type C)
Audio MIC Input / 3.5mm Jack & HDMI Output
Video 1 x HDMI 2.0 (Type A) Up to 4K @ 60 FPS
Operating System Linux Based
Power DC 5V / 3A

Package content

  • IPCOUNT-3D-EXT-0280 IP Camera
  • Mini PC
  • Safire Link Count Lite software

Data sheet

Weight
271 g
810 g
Power
DC 12 V / 600 mA, PoE (IEEE802.3af)
Temp. operation
-10º C ~ +40º C
-40º C ~ +60º C
Degree of protection
Interior
Dimensions
61.5 (H) x 204 (W) x 78 (D) mm
194 mm (H) x 70 mm (W) x 36 (D) mm
Transfer Rate
3 Kbps ~ 16 Mbps
32 Kbps ~ 8 Mbps
Power supply
DC 12 V / 600 mA, PoE (IEEE802.3af)
Material
Body: Metallic
Functions
3D-DNR, BLC, DWDR
3D-NR
Audio
2 IN / 1 OUT
No
Image sensor
1/2.8” Progressive Scan CMOS
1/3” Progressive scan CMOS
Lens
2.8 mm (82º)
2.8 mm (H: 96º, V: 70º)
Maximum resolution
3 Mpx
640 x 960
Day / Night
Auto / Programmable / Manual
Use
Interior
Base dimensions
42 x 65 mm / 4 screws
Alarms
1 input / 1 output
2 input / 2 output (Supports up to 30 VDC, 1 A / 50 VDC, 0.5 A)
Internal memory
MicroSD Card, Max 128 GB (not included)
Remote access
Web Browser, Smartphone App and Capacity Control Software
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
640 x 480 (1 ~ 25 FPS)
2048 x 1536
Compression
H.265+ / H265 / H.264+ / H.264
H264/ MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
People counting
Statistics for entries and exits | Daily, monthly and annual reports
Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports
Lente
2.8 mm (82º)
Other functions
Height Filter | Door Status Indicator
Recommended installation
Installation height: 3.0 m | Área de detección: 2.2 m Installation height: 3.5 m | Área de detección: 3.1 m Installation height: 4.0 m | Área de detección: 4.0 m Installation height: 4.5 m | Área de detección: 4.8 m Insta
Infrared Illumination
20 m
Communication interface
1 x Ethernet 10/100M BaseT
