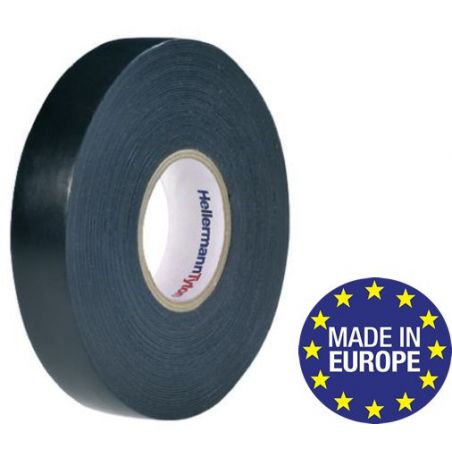

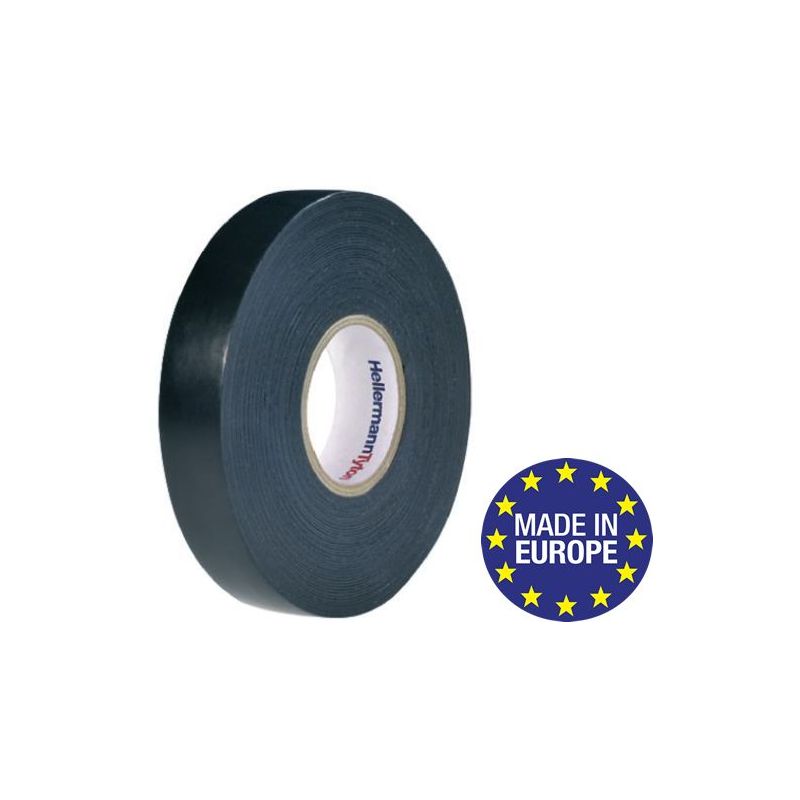

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 85SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2401 AND id_lang = 1 High voltage vulcanized tape
High voltage vulcanized tape
search
  • High voltage vulcanized tape

High voltage vulcanized tape

Self-amalgamating, linerless tape for insulating and jacketing splices up to 69 kV
Excellent electrical, chemical and physical properties

€13.37
Tax included
Reference ht-711-00402
Brand HellermannTyton
Quantity
Available Now

Free shipping
High voltage vulcanized tape

High voltage vulcanized tape

€13.37

Features

Self-amalgamating, linerless tape for insulating and jacketing splices up to 69 kV
Excellent electrical, chemical and physical properties
Building stress cones and jacketing of terminations, bus bars and joints
Quicker application due to linerless design
Uniform and void-free layering
Very flexible to conform to the most complex shapes
Compatible with all extruded cable insulations

Certifications & Approvals

Application

HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.

HelaTape Power 820 is suitable for following markets and industries

  • Electrical Installation  Electrical Installation
  • Electronics Industry  Electronics Industry
  • Telecommunication  Telecommunication
  • Wind Energy Sector  Wind Energy Sector
  • Chemical Industry  Chemical Industry
  • Offshore Industry  Offshore Industry
  • Solar Energy Sector  Solar Energy Sector
  • Shipbuilding  Shipbuilding
  • Automotive Industry  Automotive Industry
  • Aerospace Industry  Aerospace Industry
  • Defence Industry  Defence Industry
  • Rail Transportation Sector  Rail Transportation Sector

 Product Dimensions

Length (L) 9.1m
Thickness (T) 0.76mm
Width (W) 19mm

Material and Specifications

Dielectric Strength 31.5 kV/mm
Elongation at break 750 %
ELV compliant Dir. Art. 4 (2) YES
Halogenfree No
Hazardous goods No
Insulating (Yes/No) Yes
Intermittent Operating Temperature +130°C
Material Ethylene Propylene Rubber (EPR)
Operating Temperature - °C +90 °C
Self extinguishing (Yes/No) ETIM Yes
Specifications 99595_All_Languages.jpg
Suitable for high voltage (Yes/No) Yes
Tensile Strength 2.8N/mm²
Volume Resistance 10¹⁶ Ω cm
Water Absorption 0.06%
