Features

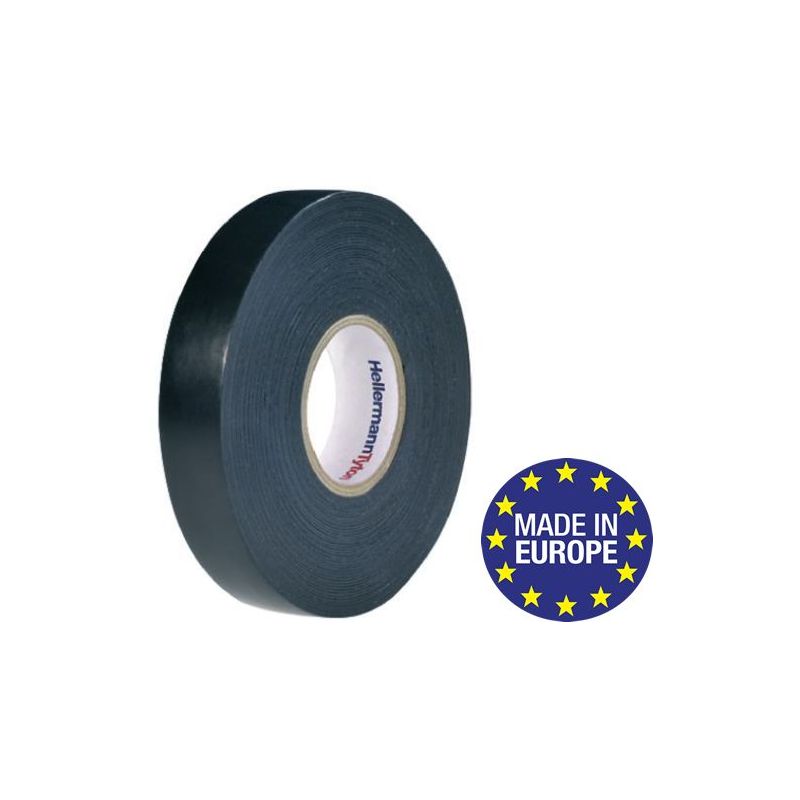

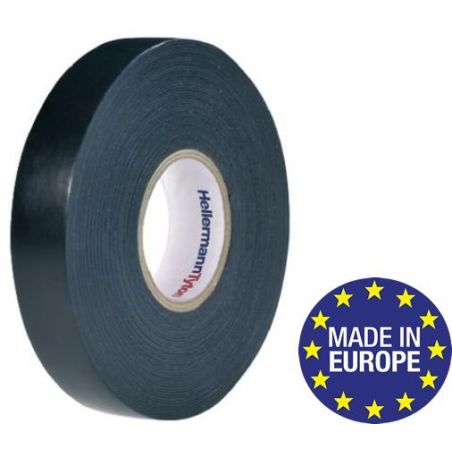

Self-amalgamating, linerless tape for insulating and jacketing splices up to 69 kV
Excellent electrical, chemical and physical properties
Building stress cones and jacketing of terminations, bus bars and joints
Quicker application due to linerless design
Uniform and void-free layering
Very flexible to conform to the most complex shapes
Compatible with all extruded cable insulations

Certifications & Approvals

Application

HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.

HelaTape Power 820 is suitable for following markets and industries

• Electrical Installation
• Electronics Industry
• Telecommunication
• Wind Energy Sector
• Chemical Industry
• Offshore Industry
• Solar Energy Sector
• Shipbuilding
• Automotive Industry
• Aerospace Industry
• Defence Industry
• Rail Transportation Sector

Product Dimensions

Material and Specifications

Dielectric Strength	31.5 kV/mm
Elongation at break	750 %
ELV compliant Dir. Art. 4 (2)	YES
Halogenfree	No
Hazardous goods	No
Insulating (Yes/No)	Yes
Intermittent Operating Temperature	+130°C
Material	Ethylene Propylene Rubber (EPR)
Operating Temperature - °C	+90 °C
Self extinguishing (Yes/No) ETIM	Yes
Specifications
Suitable for high voltage (Yes/No)	Yes
Tensile Strength	2.8N/mm²
Volume Resistance	10¹⁶ Ω cm
Water Absorption	0.06%
