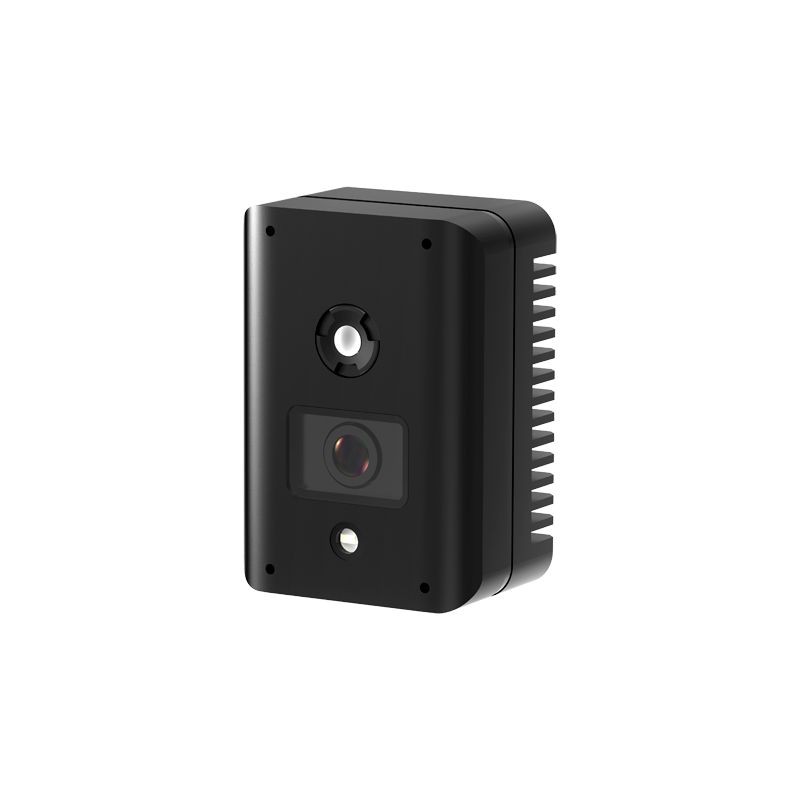

IPTC030THA-2D2Y - Sunell Dual IP Thermal Camera, 256x192 VOx | 2mm Lens,…
Sunell Dual IP Thermal Camera - 256x192 VOx | 2mm Lens - Optical sensor 1/2.8” 2 MP | 2 mm Lens - Thermal sensitivity ? 65mK - Fire detection and alarm - Temperature measurement range -20~150ºC / ± 2ºC
Reference
IPTC030THA-2D2Y
Brand
Branded
You might also like
- Sunell Dual IP Thermal Camera
- Thermal sensor 256x192 Vox
- 2 mm Lens
- Temperature measurement range -20º C~150º C (±2ºC)
- 15 Colours
- Thermal sensitivity < 65mK
- Optical sensor 1/2.8" Progressive CMOS
- 2 Megapixel (1920x1080)
- Colour 0.01 Lux / B&W 0.1 Lux
- H.265 / H.264
- RJ-45 10/100 BaseT
- Alarms
- Fire detection and alarm
- SD card recording
- WEB interface, CMS (SunView), Smartphone and NVR
- ONVIF Compatible
- Bracket included
- Weatherproof IP66
Features
- Sunell Dual IP Thermal Camera
- 256x192 VOx | 2mm Lens
- Optical sensor 1/2.8” 2 MP | 2 mm Lens
- Thermal sensitivity ? 65mK
- Fire detection and alarm
- Temperature measurement range -20~150ºC / ± 2ºC
Specs
| Brand | Sunell |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.8” Progressive Scan CMOS 2 Megapixel |
| Main Stream rate | D1(25fps) Thermal / 1920x1080 (25fps) Optical |
| Extra Stream rate | CIF (25fps) Therm, D1/VGA/640x360/CIF (25fps) Optical |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 1.9 mm (Therm) / 2.1 mm (Opt) |
| Range performance | Human Detection (1.8x0.5m): 59 m Vehicle Detection (4x1.5): 180 m Fire Detection (1x1m): 79 m Human Recognition (1.8x0.5m): 20 m Vehicle Recognition (4x1.5m): 61 m Fire Recognition (1x1m): 26 m |
| Viewing angle | 98°×75° (Term) / 136.2°×7.3° (Opt) |
| Thermal sensitivity | < 65mK (0.05 º C) |
| Thermal measurement range | -20 ~150 º C / ± 2 º C |
| Spectral range | 8~14μm |
| Pitch detector | 17μm |
| VCA | Up to 8 VCA rules (cross line, intrusion, area entry and exit) |
| Temperature rules | Up to 20 rules (20 points, 16 areas and 2 lines) |
| Intelligent functions | Fire detection and alarm, line crossing, intrusion, abandoned/lost object |
| Audio | No |
| Alarm | 1 In / 1 Relay |
| Internal memory | Micro SD card up to 128GB (Via USB port) |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF |
| Power | 12VDC / Max. 10W |
| Temp. operation | -20º C ~ +60º C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 45 mm (Fo) x 65 (An) x 96 (Al) mm |
| Weight | 450 g |
Package content
- Dual Sunell IP Thermal Camera
- Installation material
- User instructions
- Bracket included
Data sheet
- Weight
- 450 g
- Power
- 12VDC / Max. 10W
- Grado de protección
- Impermeable IP66
- Temp. operation
- -20º C ~ +60º C
- Degree of protection
- Weatherproof IP66
- Dimensions
- 45 mm (Fo) x 65 (An) x 96 (Al) mm
45 mm (Pr) x 65 (l) x 96 (L) mm - Power supply
- 12VDC / Max. 10W
- Alarm
- 1 In / 1 Relay
- Audio
- No
- Lens
- 1.9 mm (Term) / 2.1 mm (Opt)
1.9 mm (Therm) / 2.1 mm (Opt) - Viewing angle
- 98°×75° (Term) / 136.2°×7.3° (Opt)
- Internal memory
- Carte micro SD jusqu\'à 128GB (via le port USB)
Micro SD card up to 128GB (Via USB port)
Tarjeta micro SD hasta 128GB (A través de puerto USB) - Remote access
- Interface WEB, Smartphone et NVR
Interfaz WEB, Smartphone y NVR
WEB interface, CMS (SunView), Smartphone and NVR - Main Stream rate
- D1(25fps) Term / 1920x1080 (25fps) Óptica
D1(25fps) Thermal / 1920x1080 (25fps) Optical - Extra Stream rate
- CIF (25fps) Term, D1/VGA/640x360/CIF (25fps) Óptica
CIF (25fps) Therm, D1/VGA/640x360/CIF (25fps) Optical - Compression
- H.265 / H.264 / MJPEG
- Network interface
- Ethernet 10/100 BaseT
- Interoperability
- ONVIF
- Intelligent functions
- Fire detection and alarm, line crossing, intrusion, abandoned/lost object
- Thermal sensor
- 256x192 Oxyde de vanadium
256x192 Vanadium Oxide
256x192 Óxido de Vanadio - Optical sensor
- 1/2.8” Progressive Scan CMOS 2 Megapixel
- Range performance
- Detección Humano (1.8x0.5m): 59 m Detección Vehículo (4x1.5): 180 m Detección Fuego (1x1m): 79 m Reconocimiento Humano (1.8x0.5m): 20 m Reconocimiento Vehículo (4x1.5m): 61 m Reconocimiento Fuego (1x1m): 26 m
Détection de Personnes (1.8x0.5m): 59 m Détection de Véhicules (4x1.5): 180 m Détection d´Incendie (1x1m): 79 m Reconnaissance Personnes (1.8x0.5m): 20 m Reconnaissance Véhicule (4x1.5m): 61 m Reconnaissance Incendie (1x1m): 26 m
Human Detection (1.8x0.5m): 59 m Vehicle Detection (4x1.5): 180 m Fire Detection (1x1m): 79 m Human Recognition (1.8x0.5m): 20 m Vehicle Recognition (4x1.5m): 61 m Fire Recognition (1x1m): 26 m
Human Detection (1.8x0.5m): 59 m Vehicle Detection (4x1.5): 180 m Fire Detection (1x1m): 79 m Human Recognition (1.8x0.5m): 20 m Vehicle Recognition (4x1.5m): 61 m Fire Recognition (1x1m): 26 m - Thermal sensitivity
- ≤ 65mK (0.05 º C)
- Thermal measurement range
- -20 ~150 º C / ± 2 º C
- Spectral range
- 8~14μm
- Pitch detector
- 17μm
- VCA
- Up to 8 VCA rules (cross line, intrusion, area entry and exit)
Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area) - Temperature rules
- Hasta 20 reglas (20 puntos, 16 areas y 2 líneas)
Jusqu´à 20 règles (20 points et 16 zones et 2 lignes )
Up to 20 rules (20 points, 16 areas and 2 lines) - Lente
- 1.9 mm (Term) / 2.1 mm (Opt)
- Degré de protection
- Étanche IP66
- Temp. fonctionnement
- -20º C ~ +60º C
- Interface réseau
- Ethernet 10/100 BaseT
- Taux Main Stream
- D1(25fps) Term / 1920x1080 (25fps) Optique
- Taux Extra Stream
- CIF (25fps) Term, D1/VGA/640x360/CIF (25fps) Optique
