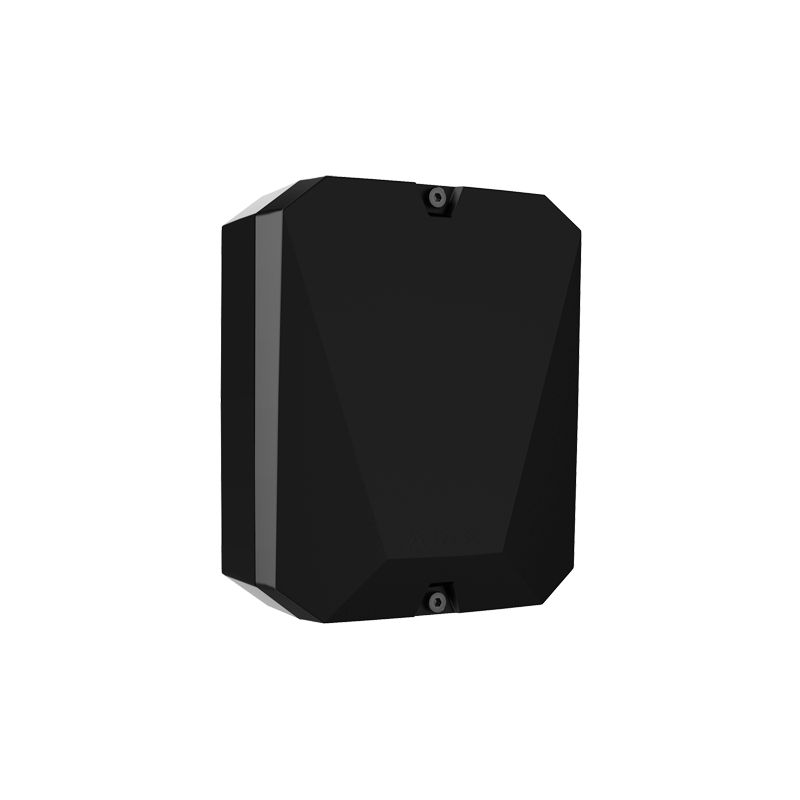

Ajax AJ-MULTITRANSMITTER-B - Multi-transmitter via radio, 868MHz Jeweller Wireless,…
Multi-transmitter via radio - 868MHz Jeweller Wireless - Up to 18 Wired alarm and tamper inputs - Configurable alarm NC/NO or EOLR (NC or NO) - Double tamper anti-opening - Double power output 12V / 1A - Reach in open space 2000 m
Reference
AJ-MULTITRANSMITTER-B
Brand
Ajax
You might also like
- Ajax
- Radio transmitter with multiple inputs
- 868MHz Jeweller Wireless
- Bidirectional
- Internal antenna range open space 2000 m
- 18 wired alarm and anti-sabotage tamper inputs
- Inhibition detection
- Tamper-resistant opening
- Double power output 12 V / 1 A
- Power supply 220 VAC and backup battery 4 or 7 Ah (not included)
- Compatibility with third party detectors with wired alarm output and with all Ajax Hubs
Features
- Multi-transmitter via radio
- 868MHz Jeweller Wireless
- Up to 18 Wired alarm and tamper inputs
- Configurable alarm NC/NO or EOLR (NC or NO)
- Double tamper anti-opening
- Double power output 12V / 1A
- Reach in open space 2000 m
Specs
| Brand | Ajax |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 2000 m in open space |
| Anti-inhibition detection | Available |
| Wired inputs | Up to 18 (alarm and tamper) |
| Alarm inputs | NO/NC or end-of-line resistance EOLR (NO/NC) / Impulse or bidirectional |
| End-of-line resistor EOL | From 1 kΩ to 7.5 kΩ |
| Tamper input | NC: Normally Closed |
| Tamper-resistant opening | Front and back |
| Power supply output | Two outputs 12 V / 1 A (in total) for wired sensors |
| Compatibility | Compatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX |
| Power | AC 110~250 V, 50/60 Hz |
| Backup battery | Battery 12 V / 4 or 7 Ah (not included) |
| Temp. operation | -10 ºC ~ 40 ºC |
| Dimensions of the backup battery | 150 (H) x 64 (W) x 94 (D) mm |
| Dimensions | 196 (H) x 238 (W) x 100 (D) mm |
Package content
- Multi-transmitter via radio
- Instructions Manual
- Mounting material
Data sheet
- Power
- AC 110~250 V, 50/60 Hz
- Frequency
- 868 MHz Jeweller
- Temp. operation
- -10 ºC ~ 40 ºC
- Transmission distance
- ≤ 2000 m in open space
- Dimensions
- 196 (H) x 238 (W) x 100 (D) mm
- Power supply output
- Two outputs 12 V / 1 A (in total) for wired sensors
- Backup battery
- Battery 12 V / 4 or 7 Ah (not included)
- Tamper-resistant opening
- Front and back
- Compatibility
- Compatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
- Anti-inhibition detection
- Available
- Tamper input
- NC: Normally Closed
- Wired inputs
- Up to 18 (alarm and tamper)
- Alarm inputs
- NO/NC or end-of-line resistance EOLR (NO/NC) / Impulse or bidirectional
- End-of-line resistor EOL
- From 1 kΩ to 7.5 kΩ
- Dimensions of the backup battery
- 150 (H) x 64 (W) x 94 (D) mm
Multi-transmitter via radio - 868MHz Jeweller Wireless - Up to 18 Wired alarm and tamper inputs - Configurable alarm NC/NO or EOLR (NC or NO) - Double tamper anti-opening - Double power output 12V / 1A - Reach in open space 2000 m
