SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1267 AND id_lang = 1 Complete kit for one SAT + Terr / 2 outputs Triax
search

Triax TOU232 - Complete kit for 1 SAT + Terr / 2 outputss

Kit consisting of an LNB TWL 01, an optical Transmitter FI TDOU 016 SA a 2-meter coaxial cable with N connectors a power supply 100 to 240 VAC / 20 Vdc - 1.2 A

€874.75
Tax included
Reference triax-307614
Brand Triax
Quantity
Available in 4/5 days

Free shipping

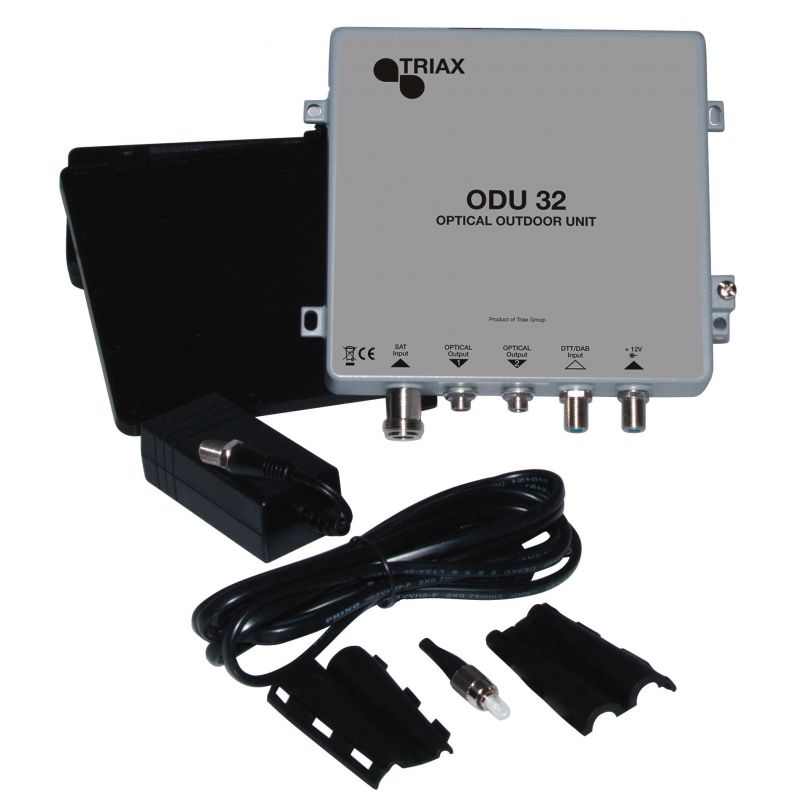

Triax TOU232 - Complete kit for 1 SAT + Terr / 2 outputss

€874.75

The Triax TOU232 is a one satellite optical Ku-Band LNB that provides a 1310 nm and 1550nm wideband optical output where all four satellite polarities and a TER signal (DAB/DTT/FM) are stacked into one frequency range (950-5450 MHz) for distribution through one single fibre optical cable. Provides a Link Budget equivalent to 2x32 = 64 ways of splitting.

Fibre optical output is via an FC/PC connector. Power is applied via an F-connector. Unit is supplied with a seperate (in-door) PSU with an F-connector output.

Kit composed of

  • 1 LNB TWL 01.
  • 1 TOU 232SA optical transmitter.
  • 1 2 m coaxial cable equipped with N connectors
  • 1 power supply from 100 to 240 Vac / 20 Vdc 1.2 A.
  • Various accessories.

Specifications

ORDER INFORMATION
EAN Number 5702663076143
OPTICAL CHARACTERISTICS
Optical output level (nom. @ 25 °C) 2 x 7.0 dBm
Optical budget for PON (max.) 2 x 19.0 dB
Optical splitting in PON (max.) 2 x 32
CHARACTERISTICS
Wavelength 1310 nm
Laser class 1M
Feedhorn diameter 40 mm
Reception frequency range 10.7 - 12.75 GHz
Reception polarization horizontal & vertical
SAT-IF range, full stacked on coax output 0.95 - 5.450 GHz
SAT-IF vertical band, stacked VL + VH 0.950 - 3.0 GHz
SAT-IF horizontal band, stacked HL + HH 3.4 - 5.45 GHz
L.O. frequency, vertical 9.75 GHz
L.O. frequency, horisontal 7.3 GHz
Image frequency rejection (min.) 40 dB
Spurious in SAT-IF band -25 dBc
Fibre link distance max. (subject to PON loss) 10 km
SAT-IF input frequency Vpol + Hpol 0.95 - 5.45 GHz
SAT-IF gain Flatness Vpol (0.95 - 3.0 GHz) < 4 dB
SAT-IF gain flatness Hpol (3.4 - 5.43 GHz) 7 (incl. 3 dB pre-emphase dB
TER input level range DTT @ 6 transponders 70 (-3 +27) dBµV
TER input level range DAB -12 dB below DTT dBµV
TER input level range FM 70 (-3 +27) dBµV
FREQUENCY
TER input frequency range DTT 470 - 854 MHz
TER input frequency range DAB 213 - 230 MHz
TER input frequency range FM 87 - 108 MHz
GAIN
Gain 62 - 72 dB
Noise figure (typical) 0.5 dB
TER gain flatness < 4 dB
TER noise figure < 10 dB
ISOLATION
Cross polar isolation (typ.) 30 dB
OPERATIONAL
AC Supply voltage 100...250 VAC
DC Operating voltage 20 VDC
DC Current consumption (incl. Full band LNB) < 500 mA
External PSU Included
External PSU item ID 307657 (TPS323-20Vdc/1.2A)
Temperature - operating See components of the kit °C
Temperature - storage See components of the kit °C
Weather Proof Rating See components of the kit
CONNECTORS
TER input F-female (75 Ohm)
Connector IN N-connector 50 Ohm
Connector DC F-female
Connector OUT Optical - FC/PC
Connector power supply F-female
MECHANICAL
Dimensions product (H x D x W) See components of the kit mm
Packaging Height 0.120 m
Packaging Width 0.280 m
Packaging Depth 0.360 m
Packaging Volume 0.012 m3
Net Weight 1.53 kg
Tara Weight 0.620 kg
Total Weight 2.15 kg
Remarks Remote feed TER 11.5Vdc/<80mA
