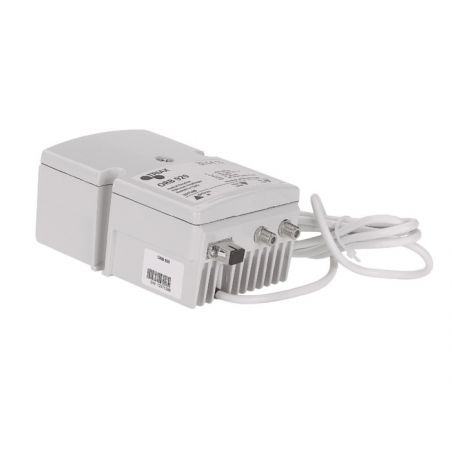

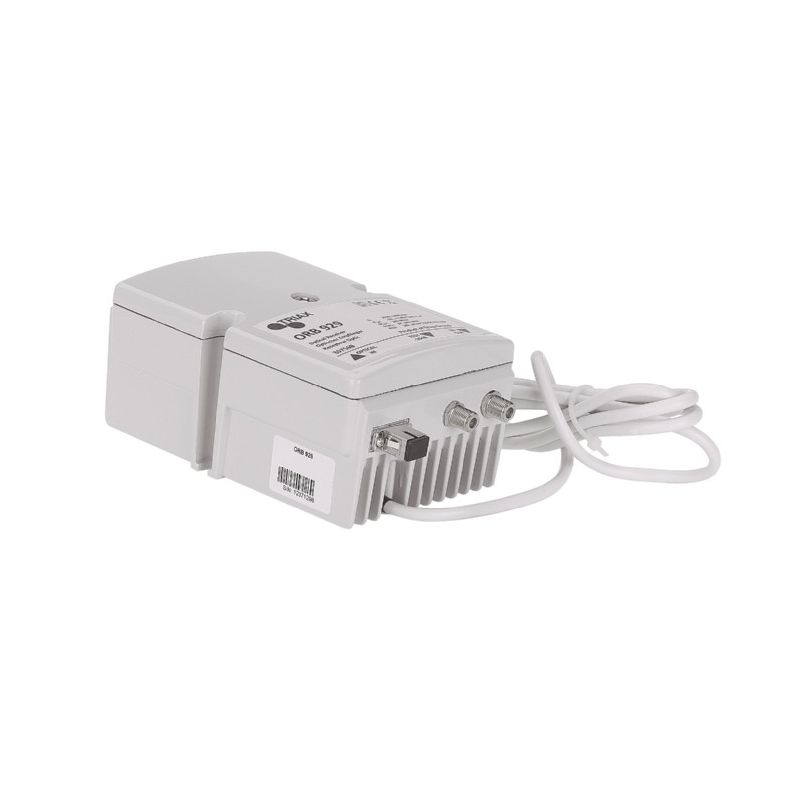

Optical receiver ORB of 47 to 862 MHz, Triax Optical level control by LED: 2 x 7 segments
Optical frequency: 47 to 862 MHz. Optical input level: -8 to +1 dBm. Integrated optical AGC: regulation range from -6 to 0 dBm. Wavelength: 1100 to 1650 nm
€546.32
Tax included
Reference
triax-307568
Brand
Triax
Optical receiver ORB of 47 to 862 MHz, Triax Optical level control by LED: 2 x 7 segments
€546.32
Features
- Optical frequency: 87 to 862 MHz
- Optical input level: -8 to +1 dBm
- Integrated optical AGC: regulation range from -6 to 0 dBm
- Wavelength: 1100 to 1650 nm
- Output level: 123 dBμV (DIN 45004B)
- Output level: 114 dBμV for 42 channels (CENELEC)
- Maximum optical input level: +3 dBm
- Output frequency: 47 to 862 MHz
- Regulation of attenuation and equalization through injectable modules not included: JPX 0 dB ... JPX 20 dB.
- Optical level control by LED: 2 x 7 segmeentos
- IP 40 aluminum compact housing
- Optical connectors: SC / APC
- RF connector: type F
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663075689 |
| OPTICAL CHARACTERISTICS | |
| Optical input power | -10.0 ... +1.0 / max. +3.0 dBm |
| Optical Return Loss | >40.0 dB |
| Eq. Input Noise Current | 8.0 pA/√Hz |
| Reception wavelength | 1100...1650 nm |
| CHARACTERISTICS | |
| AGC (Automatic Gain Control) | -6.0...0 dB |
| Max. output level | 129 dBµV |
| Output level CTB @ 60 dB IMD (42 ch) flat | 114 dBµV |
| Output level CSO @ 60 dB IMD (42 ch) flat | 114 dBµV |
| Output level stability | ± 1.0 dB |
| Test point | -20 dB |
| FREQUENCY | |
| Frequency range | 47...862 MHz |
| GAIN | |
| Gain flatness | ± 0.75 dB |
| LOSS | |
| Equalization | JXP plug-in 0...20 |
| RETURN LOSS | |
| Return Loss | > 18 dB |
| ELECTRICAL | |
| Number of receivers | 1 |
| OPERATIONAL | |
| AC Supply voltage | 180...253 / 50...60Hz VAC |
| Power Consumption (typ.) | 13.0 W |
| Operating temperature range | -20 ... +55 °C |
| IP Housing protection class | IP 64 |
| CONNECTORS | |
| Connector Type | F-female |
| Output connectors (for RF) | F-female type |
| Connector Optical | Optical - SC/APC |
| MECHANICAL | |
| Product Height | 107 mm |
| Product Depth | 75 mm |
| Product Width | 155 mm |
| Packing QTY | 1 |
| Net Weight | 1.801 kg |
| Tara Weight | 0.206 kg |
| Total Weight | 2.01 kg |
Optical frequency: 47 to 862 MHz. Optical input level: -8 to +1 dBm. Integrated optical AGC: regulation range from -6 to 0 dBm. Wavelength: 1100 to 1650 nm
