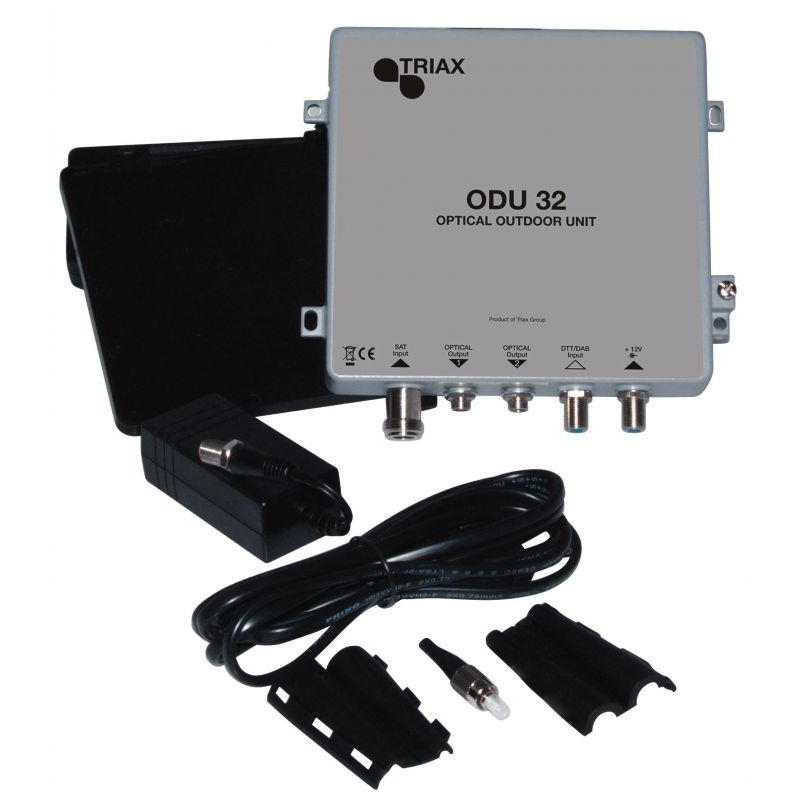

Optical Transmitter for SAT + Terr of 2 outputs Triax
Optical transmitter for installations in which the signal of a TWL01 LNB is combined with a DTT signal and converted into a fiber optic signal of 1310/1550 nm. It has 1 input SAT (N), 1 input TER (F) and two optical outputs (FC / PC) of 7 dBm that can serve up to 2 x 32 optical receivers. Wavelength 1310 nm.
€783.72
Tax included
Reference
triax-307615
Brand
Triax
Optical Transmitter for SAT + Terr of 2 outputs Triax
€783.72
The TOU232-SA is an optical transmitter for installations where the signal of a TWL01 LNB is combined with a DTT signal and converted into a fiber optic signal of 1310/1550 nm.
It has 1 input SAT (N), 1 input TER (F) and two optical outputs (FC / PC) of 7 dBm that can serve up to 2 x 32 optical receivers. Wavelength 1310 nm. To install under protection (IP 55) and 2 meters away from the LNB.
Digital terrestrial input: FM (88-108 MHz) / DAB (213-230 MHz) and UHF (470-854 MHz).
Several independent TOU232-SA units can be combined by means of an active splitter (TAS04) for more than 2x32 fiber outputs.
To make a system like this you need to use a TOU232 Kit (including the LNB TWL01) for the first complete installation, an active splitter TAS04 and a TOU232SA for each additional output of the TAS04 you want to use. This gives a possible total of 128, 192 or 256 optical outputs.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076150 |
| OPTICAL CHARACTERISTICS | |
| Optical output level (nom. @ 25 °C) | 2 x 7.0 dBm |
| Optical budget for PON (max.) | 2 x 19.0 dB |
| Optical splitting in PON (max.) | 2 x 32 |
| CHARACTERISTICS | |
| Wavelength | 1310 nm |
| Laser class | 1M |
| Fibre link distance max. (subject to PON loss) | 10 km |
| SAT-IF input frequency Vpol + Hpol | 0.95 - 5.45 GHz |
| SAT-IF gain Flatness Vpol (0.95 - 3.0 GHz) | < 4 dB |
| SAT-IF gain flatness Hpol (3.4 - 5.43 GHz) | 7 (incl. 3 dB pre-emphase) dB |
| TER input level range DTT @ 6 transponders | 70 (-3 +27) dBµV |
| TER input level range DAB | -12 dB below DTT dBµV |
| TER input level range FM | 70 (-3 +27) dBµV |
| FREQUENCY | |
| TER input frequency range DTT | 470 - 854 MHz |
| TER input frequency range DAB | 213 - 230 MHz |
| TER input frequency range FM | 87 - 108 MHz |
| GAIN | |
| TER gain flatness | < 4 dB |
| TER noise figure | < 10 dB |
| OPERATIONAL | |
| AC Supply voltage | 100...250 VAC |
| DC Operating voltage | 20 VDC |
| DC Current consumption | (incl. Full band LNB) < 500 mA |
| External PSU | Included |
| External PSU item ID | 307657 (TPS323-20Vdc/1.2A) |
| Temperature - operating | -10 to +50 °C |
| Temperature - storage | -30 to +60 °C |
| CONNECTORS | |
| TER input | F-female (75 Ohm) |
| Connector IN | N-connector 50 Ohm |
| Connector DC | F-female |
| Connector OUT | Optical - FC/PC |
| Connector power supply | F-female |
| MECHANICAL | |
| Dimensions product (H x D x W) | 140 x 145 x 30 mm |
| Net Weight | 1.14 kg |
| Tara Weight | 0.100 kg |
| Total Weight | 1.24 kg |
| Remarks | Remote feed TER 11.5Vdc/<80mA |
