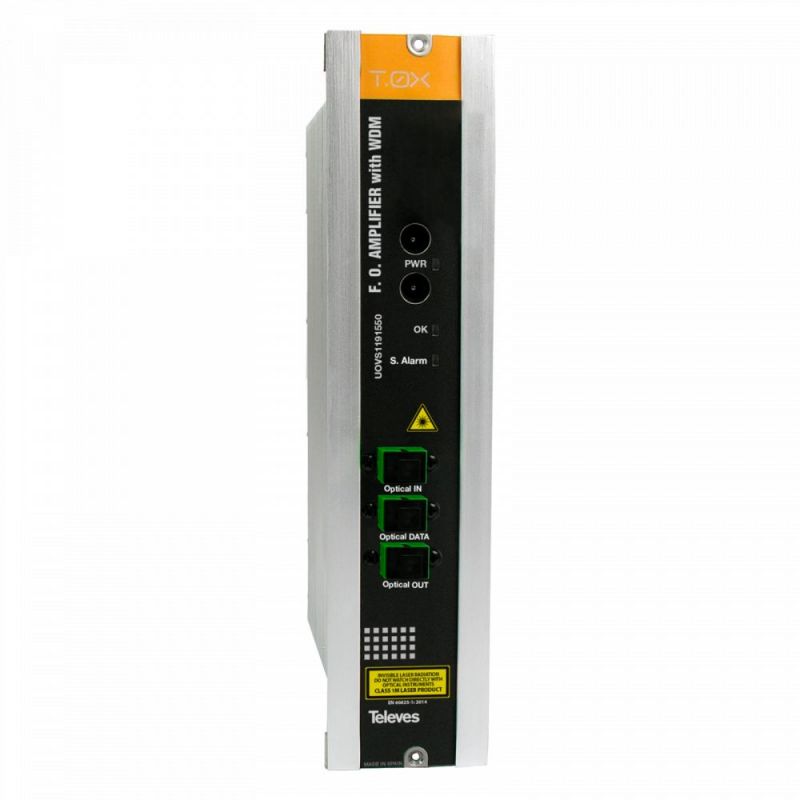

T.0X Amplifier/Optical Multiplexer 1550nm 1S "SC/APC" 19dBm Televes
search
  • T.0X Amplifier/Optical Multiplexer 1550nm 1S "SC/APC" 19dBm Televes

T.0X Amplifier/Optical Multiplexer 1550nm 1S "SC/APC" 19dBm Televes

Module that amplifies the optical signal of 1550nm, generating an output power of 19dBm. Equipped with WDM, it has 1 input of 1310/1490nm with which it multiplexes the 1550nm amplified signal, offering 1 output 1310/1490/1550nm, for use in a GPON header (usually with an OLT512). Televes 234221

€3,050.94
Tax included
Reference televes-234221
Brand Televes
Quantity
Available in 24/48h

Free shipping
T.0X Amplifier/Optical Multiplexer 1550nm 1S "SC/APC" 19dBm Televes

T.0X Amplifier/Optical Multiplexer 1550nm 1S "SC/APC" 19dBm Televes

€3,050.94

Module that amplifies the optical signal of 1550nm, generating an output power of 19dBm. Equipped with WDM, it has 1 input of 1310 / 1490nm with which it multiplexes the 1550nm amplified signal, offering 1 output 1310/1490 / 1550nm, for use in a GPON header (usually with an OLT512).
Based on YEDFA technology (fiber doped with Erbium and Iterbio), it offers high gain, greater optical power and a low noise factor.

Highlights

  • Equipped with WDM for the multiplexing of RF Overlay with GPON signals
  • -10 dBm to +10 dBm input range
  • Status LED indicators

 Features

  • Optical amplification for the RF service over fibre (RF Overlay) on GPON networks
  • Optical output power of 19dBm
  • Suitable for long distances
  • SC/APC connectors

Specifications

Optical Number of ports 1 RF Overlay @ Optical IN
1 GPON @ Optical DATA
1 (GPON + RF Overlay) @ Optical OUT (COM)
Operating wavelength nm 1310 ± 20 @ Upstream
1490 ± 20 @ Downstream
1530 ... 1565 @ RF Overlay
Input RF overlay dBm -10 ... +10
Output power RF overlay dBm 19
Noise figure dB 5 (Pin= 0 dBm @ 1550 nm)
Insertion loss (1310 & 1490nm) dB <1
Return loss dB >40
C/N dB 51
CSO dB >65
CTB dB >65
General Power supply voltage Vdc 24
Max. current consumption mA~ 250
Max. power consumption W 6
Optical connector Type SC/APC
Operating temperature ºC / ºF -5 ... + 45 / + 23 ... + 113
IP code IP 20
