search
  • INNO Instruments View1: Compactly Designed Active V-Groove Fusion Splicer

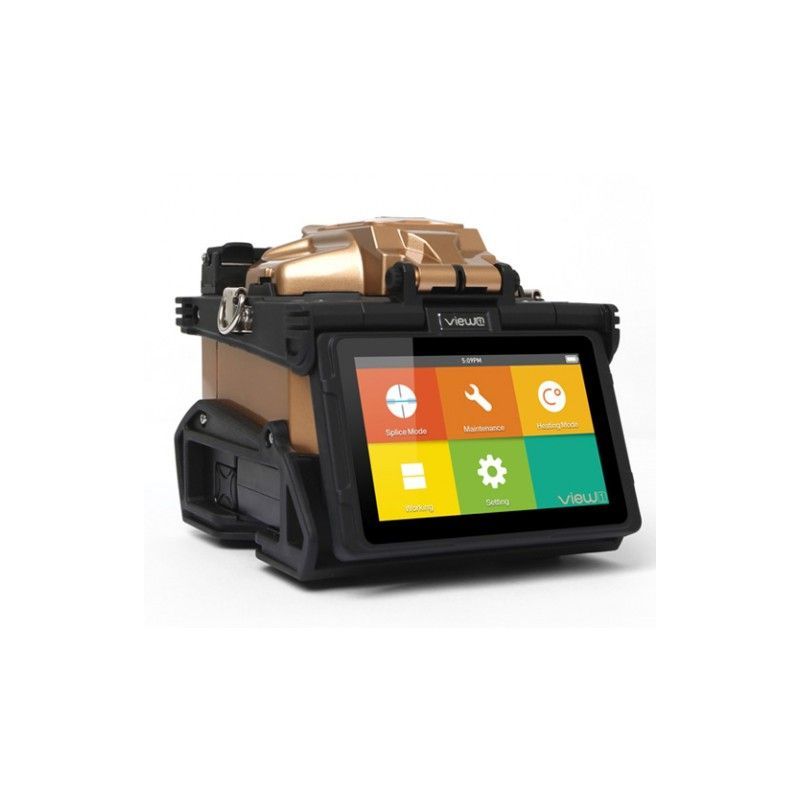

INNO Instrument View1 - Compactly Designed Active V-Groove Fusion Splicer

View 1, an active alignment splicer with incredibly compact design, is the most reliable fusion splicer on the market. The high-resolution 4.3-inch color touch screen of View 1, with a simple and intuitive GUI (graphical user interface), offers large and clear fiber images to users.

€2,843.50
Tax included
Reference inno-view1
Brand Inno Instrument
Quantity
Out-of-Stock

Free shipping

View 1, an active clad-alignment splicer with amazingly compact design, is the most dependable fusion splicer in the market.

View 1’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users.

By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 1 is the new industry standard of compact active clad-alignment splicer in the telecommunications industry.

Features

  • Compactly Designed Active V-Groove Fusion Splicer
  • Active V-Groove Clad Alignment Splicing Method
  • Light Weight and Handy Size
  • The Highest Magnification and Resolution
  • 4.3” Color LCD Touch Screen
  • Double Tapping (Zoom in & out)
  • Detachable SOC Holder and Heating Oven

Video

Specifications

Model View 1
Dimension 137H x 132W x 126D (including rubber bumper )
Weight 1.45 KG (without battery) / 1.70KG (with battery)
Number of Fiber Single
Applicable Fibers SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable 0.25~3.0 mm / Indoor Cable
Cleaved Length Diameter: 0.125~1 mm / Cleaved Length: 8~16 mm
Cladding Diameter 80~150 um
Splicing Mode Max 120 modes
Heating Mode Max 33 modes
Typical Splice Loss SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard)
Return Loss >> 60 dB
Lighting 3 White LEDs
Splicing Time Quick mode: 7 sec / SM mode: 9 sec
Estimated Splice Loss Available
Heating Sleeve Length 20~60 mm
Heating Time Typical 13 sec
Results Storage The last 2000 results
Tention Tes 1.96~2.25N
Operating Condition Operating Altitude: 0~5000m above sea level / 0~95% relative humidity / -10~50 °C / Max Wind 15m/s
Storage Condition 0~95% relative humidity / -40~80 °C
Display 90° bi-directional view, 4.3" Color High Resolution Display
Fiber View & Magnification X, Y, XY, X/Y : 520X Magnification
Power Supply AC Input 100-240V, DC Input 9-14V
No. of Splice & Heating with Battery 3800mAh Battery Capacity / Typical 140 times (Splice + Heat)
Operating Methods Button / Touch Screen
Automatic Calibration Automatic arc calibration by air pressure and temperature
Electrode Life 3500 arcs, can be extended by using an electrode grinder
Terminal Micro HDMI
