  • Analog Modulator Twin T0X A/V-PAL Mono Televes

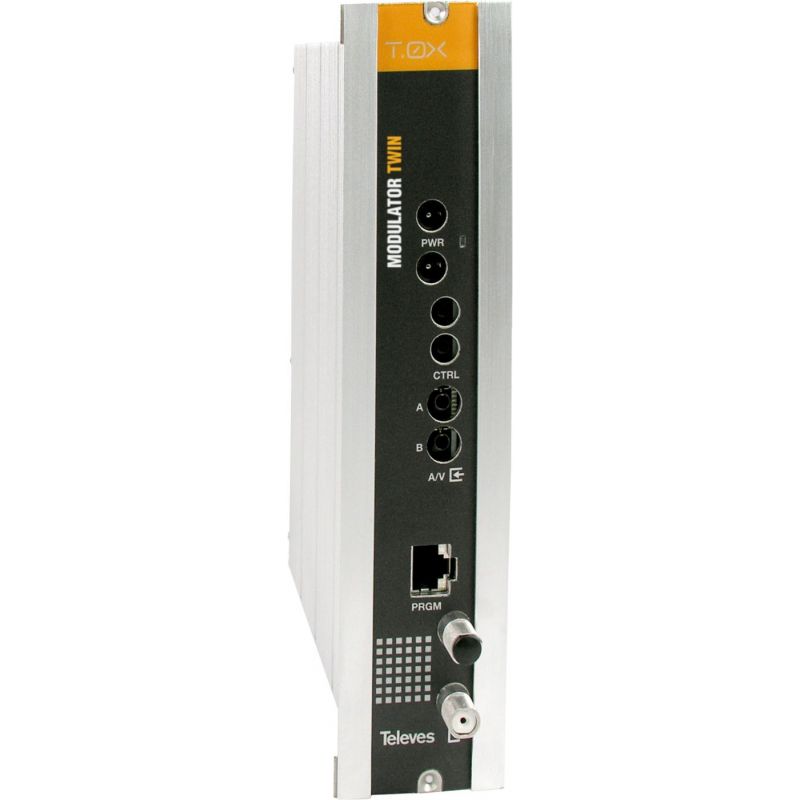

Analog Modulator Twin T0X A/V-PAL Mono Televes

The module can generate one or two analogue channels from one or two Audio/Video signals. Televes 580610
€604.76
Tax included
Reference televes-580610
Brand Televes
Quantity
Available in 24/48h

Free shipping
Analog Modulator Twin T0X A/V-PAL Mono Televes

Analog Modulator Twin T0X A/V-PAL Mono Televes

€604.76

The module can generate one or two analogue channels from one or two Audio/Video signals.

Highlights

  • Single-Sideband output
  • High C/N
  • High output level
  • Excellent flatness
  • Can be remotely controlled using CDC (Headend control)

Features

  • Video and audio parameter configuration for multiple standard compliance
  • Pre-configurated channel table (CCIR)
  • Test signal generator

Specifications

Reference 580610
INPUT A/V VIDEO Input frequency MHz 0.00005...5
Input level Vpp@75 Ω  1
Depth of modulation %  68.5 - 82.5
Differential gain  < 4
Differential phase º  < 4
Delay luma / chroma  ns  < 100
S / N ratio dB  > 52
Flatness  < 1
AUDIO Input frequency  KHz  0.04 - 15
Input level  dBm  -15...7
Impedance  Ω  10.000
Pre-emphasis  μs  50
Input level detour  dBm  -7...6
Modulation deviation  KHz program
Distortion  %  < 1
Flatness  dB  ± 1

DEPARTURE
MULTISTANDARD
(PAL)		 RF Output frequency  MHz  47...862
Frequency intervals  KHz  250
Maximum output level  dBμV

105 ± 5 typ.
Regulatory margin dB  > 15
C/N@5MHz  > 56
Passage losses  ≤ 1.5
Return losses  14 typ.
Impedance  Ω  75

GENERAL Feeding  Vdc  24
Consumption  mA  380
Protection index  IP  20
