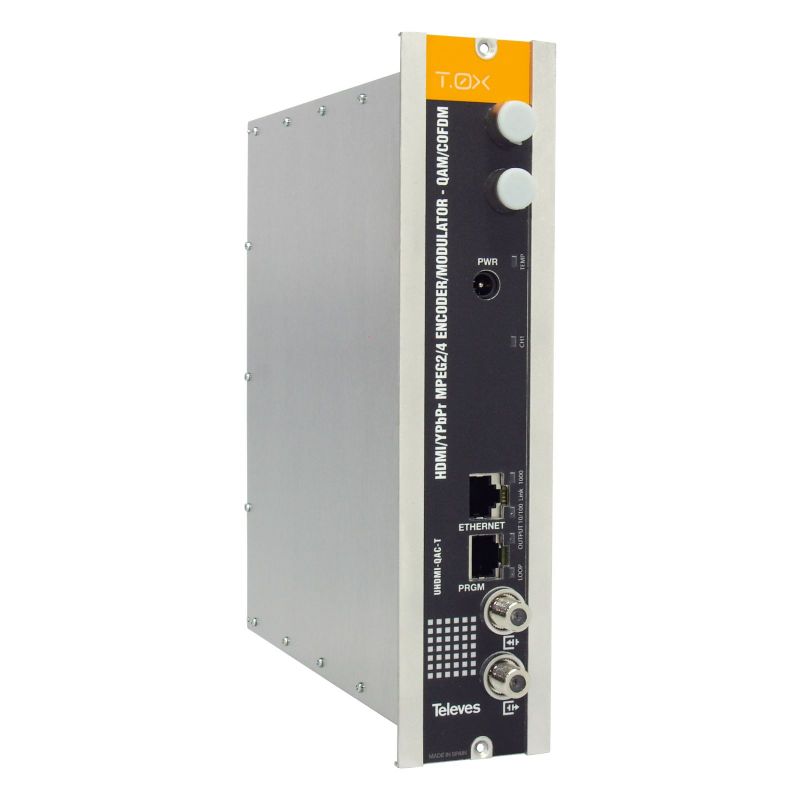

Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes
search
  • Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes
  • Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes
  • Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes

Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes

Appareil HDMI domestique à 1 entrée, qui génère un multiple numérique avec le signal fourni par une source audio/vidéo. Televes 566001

1 086,10 €
TTC
Référence televes-566001
Marque Televes
Quantité
Disponible dans 24/48h

Free shipping
Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes

Single HDMI Modulator Encoder - COFDM/QAM + Alim. 18V Televes

1 086,10 €

Appareil HDMI domestique à 1 entrée, qui génère un multiple numérique avec le signal fourni par une source audio/vidéo.

Vous aimerez

  • Synchronisation parfaite entre l'image et le son
  • Compatibilité avec plusieurs formats, résolutions et tailles de téléviseurs
  • Edition de tous les paramètres de modulation et de codage du signal
  • Configurable via une interface web et avec un programmateur PCT5.0
  • Niveau de sortie élevé sans nécessité d'un amplificateur complémentaire
  • Format de sortie muti standard
  • Excellente qualité de sortie (MER>40dB)
  • LED de gestion du module et témoin de l'état du signal
  • Énergétiquement efficace par sa faible consommation
  • Coupleur RF intégré et swich Ethernet
  • Mise à jour automatique et à distance du firmware
  • Configuration via une interface Web embarquée

Caractéristiques

  • Installation en baie ou en autonome (accessoires inclus pour installation autonome)

Spécifications

Reference 566001
INPUTS VIDEO Connectors 3 x RCA (Y, Pb, Pr)
2 groups 1 x RCA (CVBS)
AUDIO Connectors 2 x RCA (L,R)
VIDEO + AUDIO Connectors 1 x HDMI
PROFILE
FROM
CODING		 VIDEO Output format MPEG-2 / H264
Input resolution

480i, 480p, 576i, 576p, 720p, 1080i & 1080p

Auto-scan of the input resolution
Input speed -
Output resolution -
Aspect ratio 4:3, 16:9 and pass through
GOP 10, 12, 15, 16, 18, 20, 24 ó 30
Output transportation rate Variable
salida Variable
AUDIO Formato de salida AUDIO Dolby Digital AC-3 output format (digital loop only) or
MPEG1 Layer2 (analog input OR HDMI PCM)
Sampling frequency kHz 48
Output bit rate -
OUTPUT RF Connectors 1x "F" Female
Frequency margin MHz 48...862
Maximum output level dBμV +115 (+103 with output loop activated)
MER dB >40
Spurious dBc -60
Impedance Ω 75
I/Q Phase Error ° <1
I/Q Amplitude Imbalance % <1
QAM
BaudRate Mbaud 6.9
Roll-off % 15
Code Reed Solomon
Spectrum mode -
Frequent steps kHz 250
COFDM Modulation format QPSK, 16QAM, 64QAM
Guard interval μS 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id Editable
Frequent steps KHz 125 / 166
PARAMETERS
PSI		 Transport Stream ID Editable
Original Network ID Editable
Network ID Editable
LCN Editable
NIT Manual / Automatic
SDT Manual / Automatic
Type LCN Generic / UK / NorDig V1 / NorDig V2
Network name Editable
Service PID Editable
Service name Editable
Service ID Editable
MONITORING

CONTROL		 Local control Complete configuration with LCD programmer
Local monitoring LED status LOOP
LED status OUTPUT
LED status  TEMP
LED status CH1
LED status Ethernet
Remote monitoring Centralized web for remote control, management, alarms and software updates
GENERAL Supply voltage Vdc 24
Consumption W <14
Protection Index IP 20
Operating temperature °F/°C 32 a 113 / 0 a 45
