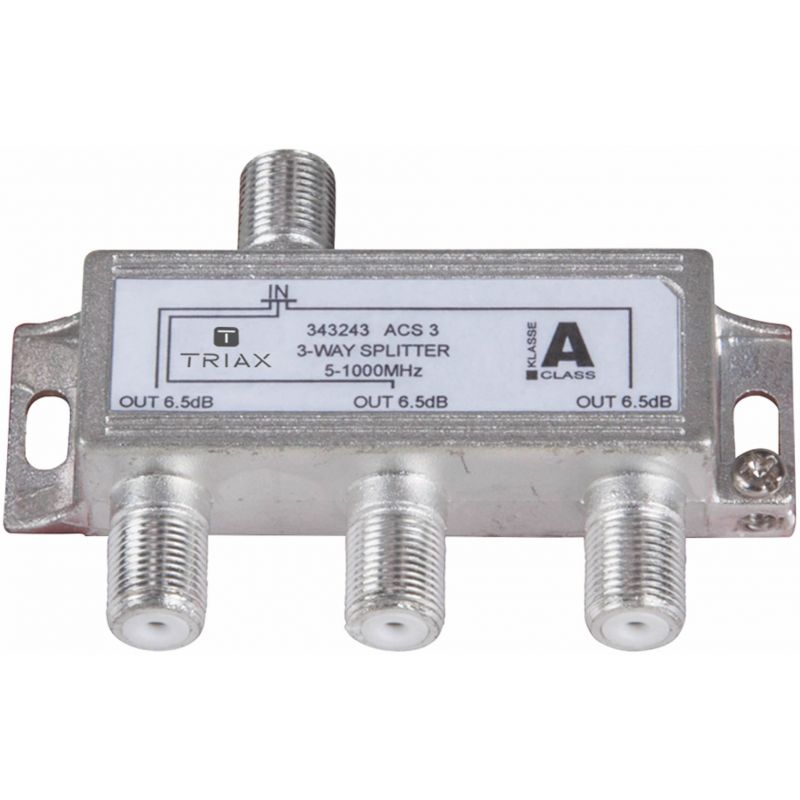

Triax ACS 3 Répartiteur 3 sorties F femelle 5-1000MHz

Distributeur 3 sorties F femelle TRIAX performance optimale pour une utilisation en CATV, SMATV & MATV. Gamme de fréquence 5-1000 MHz. Haute protection. Perte de retour Grade 2. Boîtier en zamak de haute qualité. Pilote interne de tous les ports bloqués pour AC/DC

7,04 €
TTC
Référence triax-343243
Marque Triax
Quantité
Disponible dès maintenant

Free shipping
Triax ACS 3 Distributeur 3 sorties F femelle 5-1000MHz

Triax ACS 3 Répartiteur 3 sorties F femelle 5-1000MHz

7,04 €

ACS 3 - Distributeur 3 voies

Distributeur TRIAX optimal pour utilisation en CATV, SMATV et MATV

Caractéristiques

  • Gamme de fréquence 5-1000 MHz
  • Haute protection
  • Perte de retour Grade 2
  • Logement en zamak de haute qualité
  • Pilote interne de tous les ports bloqués pour AC/DC
  • Selon les normes EN 50083-2 et EN 60728-4

Spécifications

ORDER INFORMATION
EAN Number 5702663432437
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX splitter
FREQUENCY
Frequency range 5...1000 MHz
LOSS
Tap loss (in-tap) 5-40 MHz 6.0 dB
Tap loss (in-tap) 40-470 MHz 5.8 dB
Tap loss (in-tap) 470-860 MHz 6.5 dB
Tap loss (in-tap) 860-1000 MHz 6.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 25 dB
Isolation (tap-tap) 40-470 MHz 30 dB
Isolation (tap-tap) 470-860 MHz 24 dB
Isolation (tap-tap) 860-1000 MHz 23 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 21 dB
Return loss (tap) 5-40 MHz 21 dB
Return loss (in-out) 40-470 MHz 20 dB
Return loss (tap) 40-470 MHz 20 dB
Return loss (in-out) 470-860 MHz 20 dB
Return loss (tap) 470-860 MHz 20 dB
Return loss (in-out) 860-1000 MHz 20 dB
Return loss (tap) 860-1000 MHz 20 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Application MATV, SMATV 1Ghz
Screening Efficiency EN50083-2 (Class A)
Certification IEC 60 728-2, IEC 60 728-4, IEC 60 728-11
Environment Indoor
CONNECTORS
Number of outputs 3
Connector Type F-female
MECHANICAL
Bracket (optional) 1x ACB-S / Art No 343233
Main material Zinc diecast/CuSn plated
Packing QTY 1
Packaging Height 0.060 m
Packaging Width 0.070 m
Packaging Depth 0.030 m
Net Weight 0.040 kg
Tara Weight 0.005 kg
Total Weight 0.045 kg
