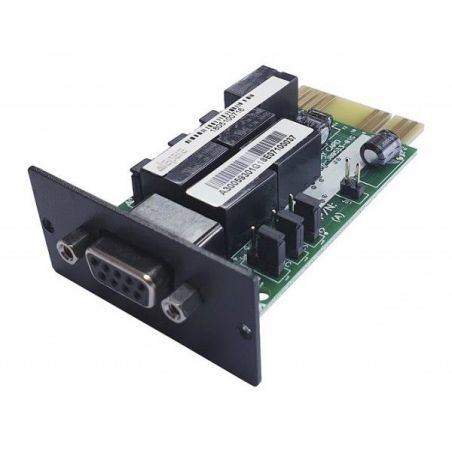

The AS400 communication card supplies signals through the DB9 connector contacts for remote UPS monitoring. To meet the different requirements of the applications, the AS400 card is able to select the status of the signal (Open or Closed) by configuring the jumpers of the card.

Pin Assignment

• PIN 1 UPS FAILURE
• PIN 2 UPS AUDIBLE ALARM
• PIN3 GND
• PIN 4 ON / OFF INPUT
• PIN 5 RELAYS
• PIN 6 ACTIVE BYPASS
• PIN 7 LOW BATTERY
• PIN 9 WITHOUT USE

Description of the functions of the "jumpers"

• JP 1 ALARM UPS for DEB9 PIN 2
• JP 2 UPS ON for DEB9 PIN 5
• JP 3 BYPASS for DB9 PIN 6
• JP 4 LOW BATTERY for DB9 PIN 7
• JP 5 UNUSED for DB9 PIN 9
• JP 6 UPS FAILURE for DB9 PIN 1

Warranty

• 1 year In Situ
