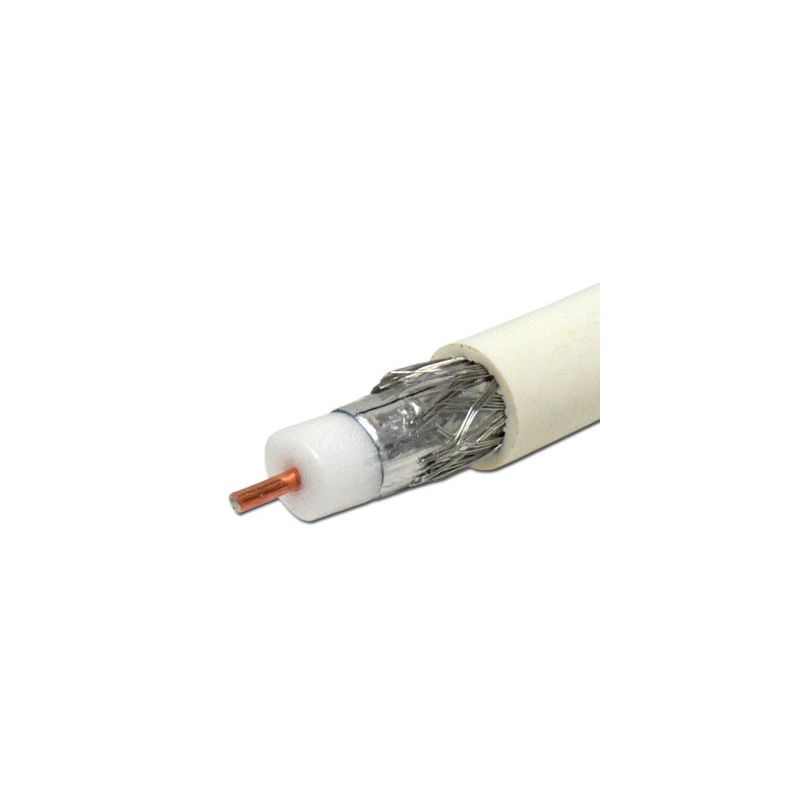

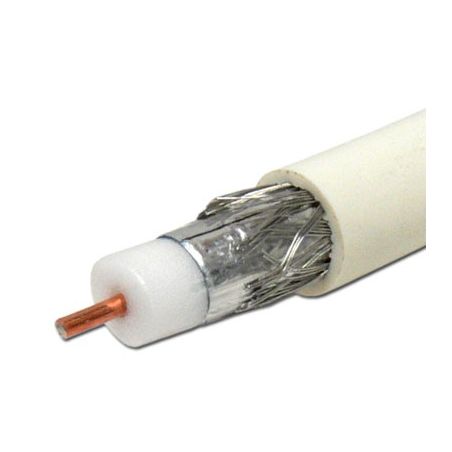

Coaxial cable RG59 trishield 77 shielding white int-ext coil 305 meters

Coil of 305 meter.Series 59 Coaxial Cable - LTE. Copper-Clad Steel Conductor. Foamed Polyethylene Dielectric. Bonded APA Laminate Shield. 77% Aluminum Braid. APA Laminate Shield (ShieldXTM). White PVC Jacket. RoHS and WEEE Compliant. Meets Class A+ Shielding, EN 50117 2-4

€119.00
Tax included
Reference T59TSFx77-U
Quantity
Available in 24/48h

Free shipping
Cable coaxial RG6 trishield 80% apantallamiento blanco int-ext bobina 305 metros

Coaxial cable RG59 trishield 77 shielding white int-ext coil 305 meters

€119.00

This model replaces the 2605-RG59 - RG59 trishield 77 shield coaxial cable

Class A + triple-shielded coaxial cable, which offers high quality transport of TV / Video signal with low LTE interference.

Features

  • Series 6 Coaxial Cable - LTE
  • Copper-Clad Steel Driver
  • Foamed Polyethylene Dielectric
  • Bonded APA Laminate Shield
  • 77% Aluminum Braid
  • APA Laminate Shield (ShieldX ™)
  • White PVC cover
  • RoHS and WEEE Compliant
  • Meets Class A + Shielding, EN 50117 2-4

Specifications

Material Detail inches mm
Inner Conductor Copper-Clad Steel 0.0320 0.81
Dielectric Foamed Polyethylene 0.144 3.66
1st Outer Conductor Sealed APA Tape 0.150 3.81
2nd Outer Conductor 77% Aluminum Braid 0.175 4.45
3rd Outer Conductor APA Tape (ShieldXTM) 0.181 4.60
Floodant --- --- ---
Jacket PVC, White 0.241 6.12
Messenger --- --- ---
Mechanical Specifications
Minimum Bend Radius, in. (mm)   0.75 (19.05)
Product Weight (less reel) 24 lbs /kft 36 kg / km
Pull Force   > 10 lbf < 17 lbf > 45 N < 76 N
Tensile   ≥ 25 lbf ≥ 110 N
 Electrical Specifications
 Impedance, Ω     75 ± 3
 Velocity of Propagation, %    83
 Capacitance, Nominal  16.3 pF/ft     53.5 pF/m
 DC Resistance   Ω / kft    Ω / km
 Inner Conductor  49.2    161
 Outer Conductor  7.25     24
 Loop  56.5     185
 Structural Return Loss, dB
 5-30 MHz     -27
30-470 MHz    -27
470-1000 MHz    -24
1000-2000 MHz    -22
2000-3000 MHz    -20
RFI Shielding
Meets Class A+ Shielding, EN 50117 2-4
Transfer Impedance
5-30 MHz   ≤ 2.5 mΩ•m
Screening Attenuation
30-1000 MHz    ≥ 95 dB
1000-2000 MHz    ≥ 85 dB
2000-3000 MHz    ≥ 75 dB
 Attenuation, Maximum @ 68 °F (20 °C)
 Frequency, MHz   dB / 100 ft   dB / 100 m
 5  0.86  2.82
 55  2.05   6.73
 100  2.69   8.83
 211  3.80  12.47
 250  4.10  13.45
 270  4.22  13.85
 300  4.45  14.60
330 4.66  15.29
350 4.80  15.75
400 5.10  16.73
450 5.40  17.72
500 5.70  18.70
550 5.95  19.52
600 6.20  20.34
750 6.97  22.87
870 7.57  24.84
1000 8.12  26.64
1450 9.82  32.22
1750 10.92  35.83
2150 12.10  39.70
2250 12.38  40.62
2500 13.05  42.81
3000 14.30  46.92
