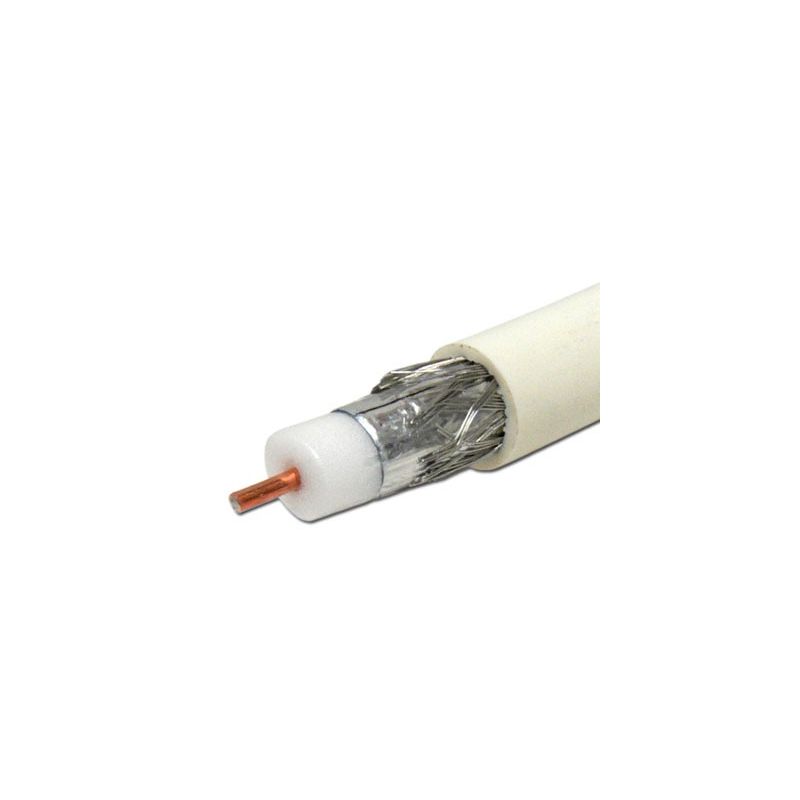

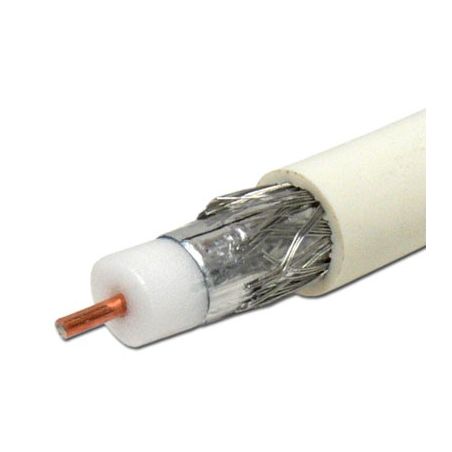

  • Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Coaxial cable RG6 trishield 77 white shield meter

Class A + triple-shielded coaxial cable, which offers high quality transport of TV / Video signal with low LTE interference. Series 6 - LTE. Copper-Clad Steel Conductor. Foamed Polyethylene Dielectric. Bonded APA Laminate Shield. 77% Aluminum Braid. Black

€0.61
Tax included
Reference 2625-RG6
Quantity
Available Now

Free shipping
Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Coaxial cable RG6 trishield 77 white shield meter

€0.61

Class A + triple-shielded coaxial cable, which offers high quality transport of TV / Video signal with low LTE interference.

Features

  • Series 6 Coaxial Cable - LTE
  • Copper-Clad Steel Driver
  • Foamed Polyethylene Dielectric
  • Bonded APA Laminate Shield
  • 77% Aluminum Braid
  • APA Laminate Shield (ShieldX ™)
  • White PVC cover
  • RoHS and WEEE Compliant
  • Meets Class A + Shielding, EN 50117 2-4

Specifications

Material Detail inches mm
Inner Conductor Copper-Clad Steel 0.0403 1.02
Dielectric Foamed Polyethylene 0.181 4.60
1st Outer Conductor Sealed APA Tape 0.189 4.80
2nd Outer Conductor 77% Aluminum Braid 0.205 5.21
3rd Outer Conductor APA Tape (ShieldXTM) 0.210 5.33
Floodant --- --- ---
Jacket PVC, White 0.268 6.81
Messenger --- --- ---
Mechanical Specifications
Minimum Bend Radius, in. (mm)   1.00 (25.40)
Product Weight (less reel) 28 lbs /kft 42 kg / km
Pull Force   > 11 lbf < 18 lbf > 50 N < 80 N
Tensile   ≥ 40 lbf ≥ 180 N
 Electrical Specifications
 Impedance, Ω     75 ± 3
 Velocity of Propagation, %    85
 Capacitance, Nominal  16.2 pF/ft     53.2 pF/m
 DC Resistance   Ω / kft    Ω / km
 Inner Conductor   31.0    102
 Outer Conductor  5.70     19
 Loop  36.7     120
 Structural Return Loss, dB
 5-30 MHz     -27
30-470 MHz    -27
470-1000 MHz    -24
1000-2000 MHz    -22
2000-3000 MHz    -20
RFI Shielding
Meets Class A+ Shielding, EN 50117 2-4
Transfer Impedance
5-30 MHz   ≤ 2.5 mΩ•m
Screening Attenuation
30-1000 MHz    ≥ 95 dB
1000-2000 MHz    ≥ 85 dB
2000-3000 MHz    ≥ 75 dB
 Attenuation, Maximum @ 68 °F (20 °C)
 Frequency, MHz   dB / 100 ft   dB / 100 m
 5  0.58  1.90
 55  1.50 4.92
 100  2.00 6.56
 211  3.05  10.01
 250  3.23  10.60
 270  3.24  10.63
 300  3.55  11.65
330 3.74 12.27
350 3.85 12.63
400 4.15 13.62
450 4.28 14.04
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
870 6.09 19.98
1000 6.53 21.42
1450 7.89 25.89
1750 8.74 28.67
2150 9.46 31.04
2250 9.91 32.51
2500 10.44 34.25
3000 11.44 37.53
