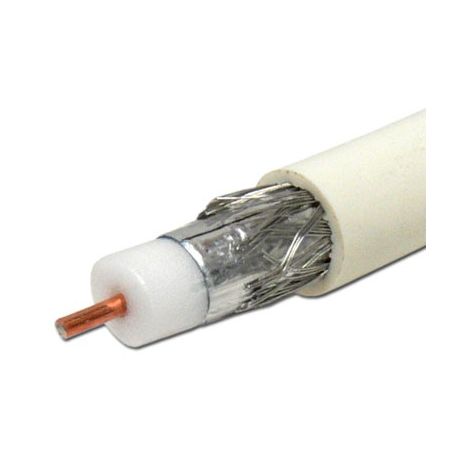

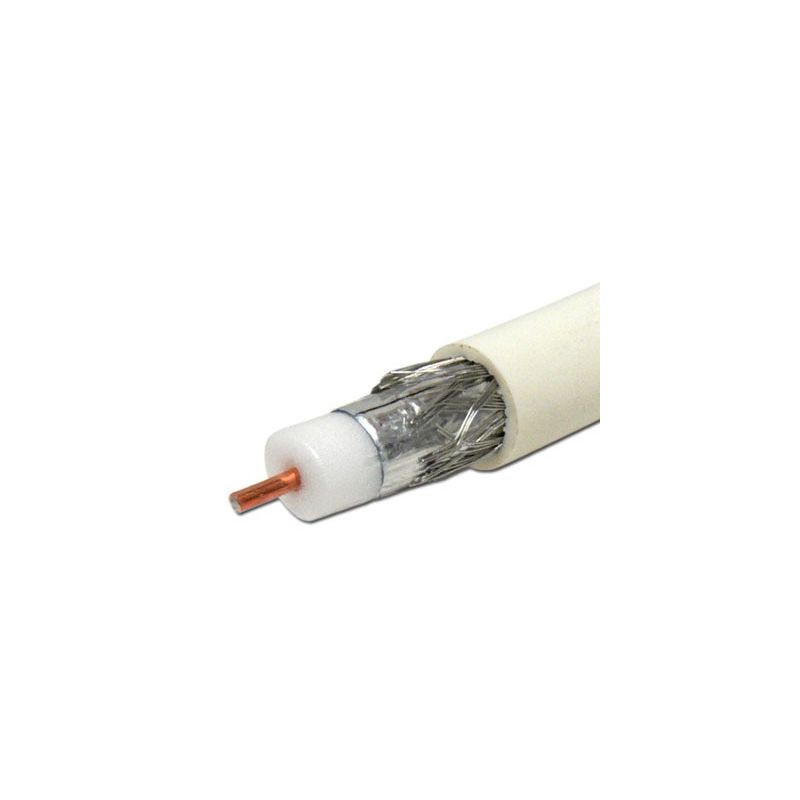

  • Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Cabo coaxial RG6 trishield 77 escudo branco metro

Cabo coaxial de blindagem tripla Classe A +, que oferece transporte de alta qualidade de sinal de TV / Vídeo com baixa interferência LTE. Série 6 - LTE. Condutor de aço revestido de cobre. Dielétrico de Polietileno Espumante. Escudo de laminado aglutinado APA. 77% trança de alumínio. Preto

0,61 €
Com IVA
Referência 2625-RG6
Quantidade
Disponível agora

Free shipping
Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Cabo coaxial RG6 trishield 77 escudo branco metro

0,61 €

Cabo coaxial de blindagem tripla Classe A +, que oferece transporte de alta qualidade de sinal de TV / Vídeo com baixa interferência LTE.

Características

  • Cabo Coaxial Série 6 - LTE
  • Driver de aço revestido de cobre
  • Dielétrico de Polietileno Espumante
  • Escudo de laminado aglutinado APA
  • 77% trança de alumínio
  • Escudo Laminado APA (ShieldX ™)
  • Casaco de PVC branco
  • Conformidade com RoHS e WEEE
  • Atende à Classe A + Blindagem, EN 50117 2-4

Especificações

Material Detail inches mm
Inner Conductor Copper-Clad Steel 0.0403 1.02
Dielectric Foamed Polyethylene 0.181 4.60
1st Outer Conductor Sealed APA Tape 0.189 4.80
2nd Outer Conductor 77% Aluminum Braid 0.205 5.21
3rd Outer Conductor APA Tape (ShieldXTM) 0.210 5.33
Floodant --- --- ---
Jacket PVC, White 0.268 6.81
Messenger --- --- ---
Mechanical Specifications
Minimum Bend Radius, in. (mm)   1.00 (25.40)
Product Weight (less reel) 28 lbs /kft 42 kg / km
Pull Force   > 11 lbf < 18 lbf > 50 N < 80 N
Tensile   ≥ 40 lbf ≥ 180 N
 Electrical Specifications
 Impedance, Ω     75 ± 3
 Velocity of Propagation, %    85
 Capacitance, Nominal  16.2 pF/ft     53.2 pF/m
 DC Resistance   Ω / kft    Ω / km
 Inner Conductor   31.0    102
 Outer Conductor  5.70     19
 Loop  36.7     120
 Structural Return Loss, dB
 5-30 MHz     -27
30-470 MHz    -27
470-1000 MHz    -24
1000-2000 MHz    -22
2000-3000 MHz    -20
RFI Shielding
Meets Class A+ Shielding, EN 50117 2-4
Transfer Impedance
5-30 MHz   ≤ 2.5 mΩ•m
Screening Attenuation
30-1000 MHz    ≥ 95 dB
1000-2000 MHz    ≥ 85 dB
2000-3000 MHz    ≥ 75 dB
 Attenuation, Maximum @ 68 °F (20 °C)
 Frequency, MHz   dB / 100 ft   dB / 100 m
 5  0.58  1.90
 55  1.50 4.92
 100  2.00 6.56
 211  3.05  10.01
 250  3.23  10.60
 270  3.24  10.63
 300  3.55  11.65
330 3.74 12.27
350 3.85 12.63
400 4.15 13.62
450 4.28 14.04
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
870 6.09 19.98
1000 6.53 21.42
1450 7.89 25.89
1750 8.74 28.67
2150 9.46 31.04
2250 9.91 32.51
2500 10.44 34.25
3000 11.44 37.53

Folha do produto
