SELECT * FROM ps_od_oosbutton_manufacturerSELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 277 AND id_lang = 3 Cable coaxial RG6 trishield 77 apantallamiento blanco metro
Cable coaxial RG6 trishield 80% apantallamiento blanco metro
search
  • Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Cable coaxial RG6 trishield 77 apantallamiento blanco metro

Cable coaxial clase A + de triple blindaje, que ofrece transporte de alta calidad de señal de TV / Video con baja interferencia LTE. Serie 6 - LTE. Conductor de acero revestido de cobre. Dieléctrico de polietileno espumado. Bonded APA Laminate Shield. Trenza de aluminio 77%. Negro

0,61 €
Impuestos incluidos
Referencia 2625-RG6
Cantidad
Disponible ahora

Free shipping

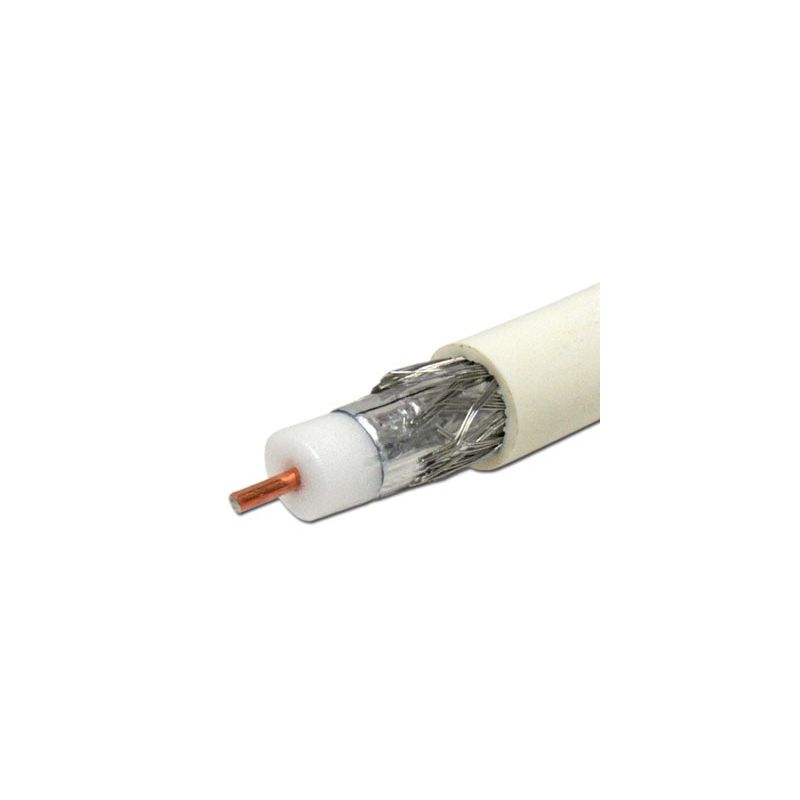

Cable coaxial RG6 trishield 80% apantallamiento blanco metro

Cable coaxial RG6 trishield 77 apantallamiento blanco metro

0,61 €

Cable coaxial clase A + de triple blindaje, que ofrece transporte de alta calidad de señal de TV / Video con baja interferencia LTE.

Características

  • Cable coaxial de la serie 6 - LTE
  • Conductor de acero revestido de cobre
  • Dieléctrico de polietileno espumado
  • Bonded APA Laminate Shield
  • Trenza de aluminio 77%
  • APA Laminate Shield (ShieldX ™)
  • Cobertura blanca de PVC
  • RoHS y WEEE obedientes
  • Cumple con Blindaje Clase A +, EN 50117 2-4

Especificaciones

Material Detail inches mm
Inner Conductor Copper-Clad Steel 0.0403 1.02
Dielectric Foamed Polyethylene 0.181 4.60
1st Outer Conductor Sealed APA Tape 0.189 4.80
2nd Outer Conductor 77% Aluminum Braid 0.205 5.21
3rd Outer Conductor APA Tape (ShieldXTM) 0.210 5.33
Floodant --- --- ---
Jacket PVC, White 0.268 6.81
Messenger --- --- ---
Mechanical Specifications
Minimum Bend Radius, in. (mm)   1.00 (25.40)
Product Weight (less reel) 28 lbs /kft 42 kg / km
Pull Force   > 11 lbf < 18 lbf > 50 N < 80 N
Tensile   ≥ 40 lbf ≥ 180 N
 Electrical Specifications
 Impedance, Ω     75 ± 3
 Velocity of Propagation, %    85
 Capacitance, Nominal  16.2 pF/ft     53.2 pF/m
 DC Resistance   Ω / kft    Ω / km
 Inner Conductor   31.0    102
 Outer Conductor  5.70     19
 Loop  36.7     120
 Structural Return Loss, dB
 5-30 MHz     -27
30-470 MHz    -27
470-1000 MHz    -24
1000-2000 MHz    -22
2000-3000 MHz    -20
RFI Shielding
Meets Class A+ Shielding, EN 50117 2-4
Transfer Impedance
5-30 MHz   ≤ 2.5 mΩ•m
Screening Attenuation
30-1000 MHz    ≥ 95 dB
1000-2000 MHz    ≥ 85 dB
2000-3000 MHz    ≥ 75 dB
 Attenuation, Maximum @ 68 °F (20 °C)
 Frequency, MHz   dB / 100 ft   dB / 100 m
 5  0.58  1.90
 55  1.50 4.92
 100  2.00 6.56
 211  3.05  10.01
 250  3.23  10.60
 270  3.24  10.63
 300  3.55  11.65
330 3.74 12.27
350 3.85 12.63
400 4.15 13.62
450 4.28 14.04
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
870 6.09 19.98
1000 6.53 21.42
1450 7.89 25.89
1750 8.74 28.67
2150 9.46 31.04
2250 9.91 32.51
2500 10.44 34.25
3000 11.44 37.53

Ficha del producto
