Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m
search
  • Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

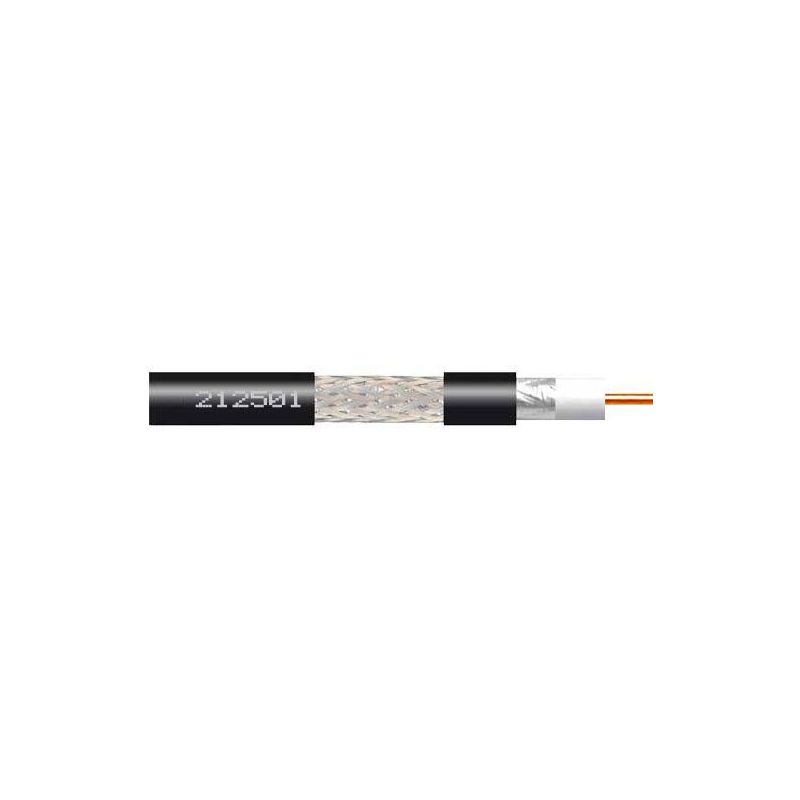

Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

Coaxial cable T-100 PE EN 50117-2-5 Class A 3GHz 16PAtC 1.3/4.8/6.6mm Black. 250m coils

€0.86
Tax included
Reference televes-212502
Brand Televes
Quantity
Available in 24/48h

Free shipping
Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

Coaxial Cable T-100 PE EN 50117-2-5 Class A B 100 0.82 16PAtC Ø 1.13/4.8/6.6mm Black 250m

€0.86

Coaxial cable for ICT 250 m. to implement the regulation for the Common Infrastructures of Telecommunications (TIC).
Black color cable to make it more concealed in any type of installation.

Specifications

Models 212502
INSERT COMPOSITION. CONDUCTOR - BROWN COPPER - DRILLED COPPER
Televés model T-100
Internal Explorer Ø mm 1.13
material - Copper
Resistance Ω / Km 20
Dielectric Ø mm 4.7
material - expanded polyethylene
Shield foil Aluminum + Polyester + Aluminum
Braid Resistance Ω / Km 27
material - Tinned copper
Fixing Ribbon None
Sealing Gel None
Shell Ø mm 6.6
color - black
Material - PE
Min. radius of bending mm 33
Shielding dB 75
Power pF / m 52
Usage type Outdoor
Meters in coil length / coil m 250

Frequency attenuation (MHz) 200 dB / m 0.08
500 0.13
800 0.16
1000 0.19
1350 0.22
1750 0.25
2050 0.28
2300 0.30
