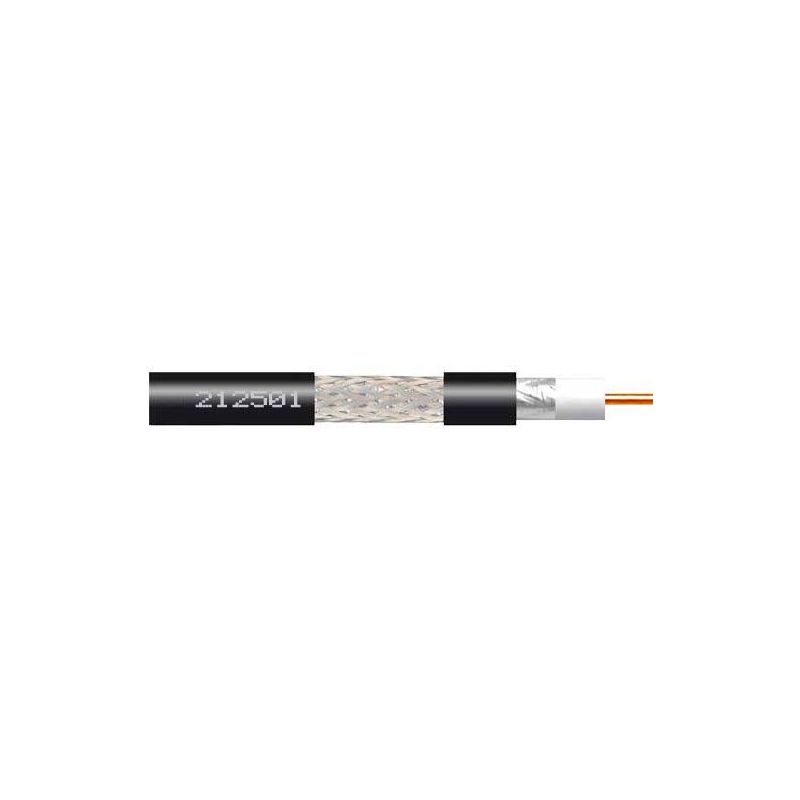

Cable Coaxial T100 Cu/Al Ø1,13/4,7/6,6mm. PE Negro. Bobinas de 250m
Cable coaxial T-100 PE EN 50117-2-5 Class A 3GHz 16PAtC 1.3/4.8/6.6mm Negro. Bobinas de 250m.
0,86 €
Impuestos incluidos
Referencia
televes-212502
Marca
Televes
Cable Coaxial T100 Cu/Al Ø1,13/4,7/6,6mm. PE Negro. Bobinas de 250m
0,86 €
Cable coaxial para ICT 250 m. para implementar la normativa para las Infraestructuras Comunes de Telecomunicaciones (TIC).
Cable de color negro para hacerlo más disimulado en cualquier tipo de instalación.
Especificaciones
| Models | 212502 | ||
| INSERT COMPOSITION. CONDUCTOR - BROWN | COPPER - DRILLED COPPER | ||
| Televés model | T-100 | ||
| Internal Explorer | Ø | mm | 1.13 |
| material | - | Copper | |
| Resistance | Ω / Km | 20 | |
| Dielectric | Ø | mm | 4.7 |
| material | - | expanded polyethylene | |
| Shield foil | Aluminum + Polyester + Aluminum | ||
| Braid | Resistance | Ω / Km | 27 |
| material | - | Tinned copper | |
| Fixing Ribbon | None | ||
| Sealing Gel | None | ||
| Shell | Ø | mm | 6.6 |
| color | - | black | |
| Material | - | PE | |
| Min. radius of bending | mm | 33 | |
| Shielding | dB | 75 | |
| Power | pF / m | 52 | |
| Usage type | Outdoor | ||
| Meters in coil | length / coil | m | 250 |
| Frequency attenuation (MHz) | 200 | dB / m | 0.08 |
| 500 | 0.13 | ||
| 800 | 0.16 | ||
| 1000 | 0.19 | ||
| 1350 | 0.22 | ||
| 1750 | 0.25 | ||
| 2050 | 0.28 | ||
| 2300 | 0.30 | ||
