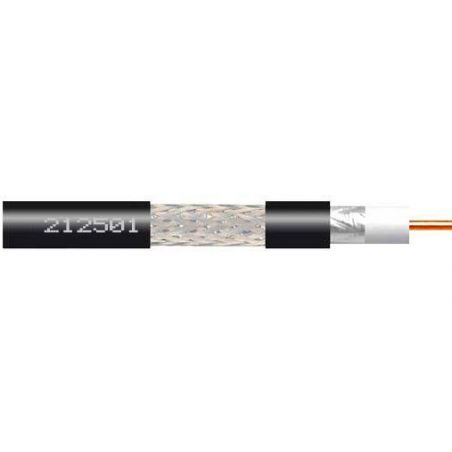

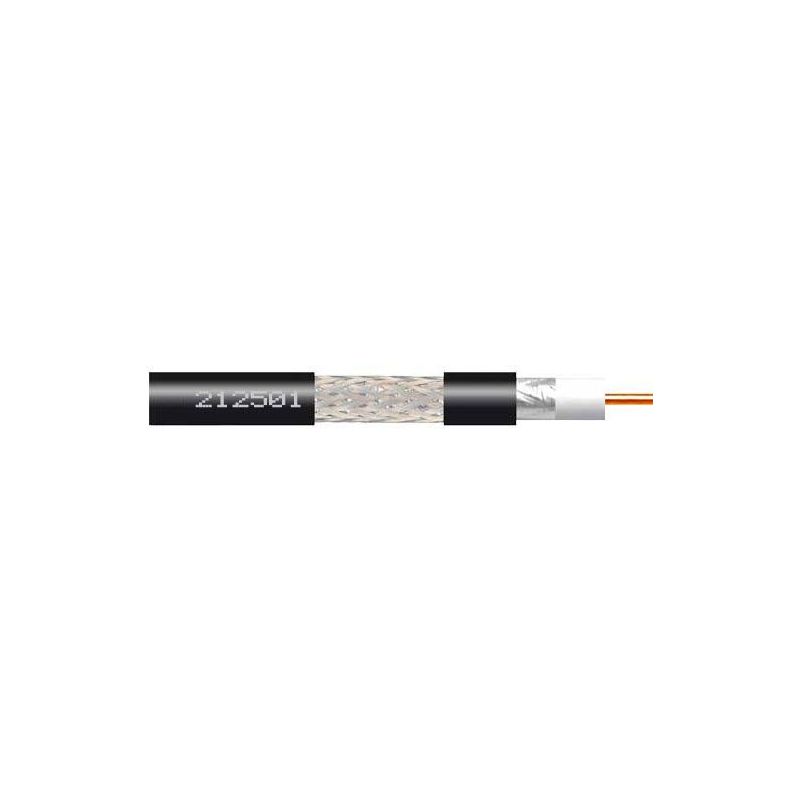

Câble Coaxial T-100 PE EN 50117-2-5 Class A 16PAtC Ø 1,13/4,8/6,6mm Noir 250m
Câble Coaxial T-100 PE EN 50117-2-5 Class A 3GHz 16PAtC 1.3/4.8/6.6mm Noir. Coils of 250m.
0,86 €
TTC
Référence
televes-212502
Marque
Televes
Câble Coaxial T-100 PE EN 50117-2-5 Class A 16PAtC Ø 1,13/4,8/6,6mm Noir 250m
0,86 €
Câble coaxial pour ICT 250 m. mettre en œuvre les règlements relatifs aux infrastructures communes de télécommunications (TIC).
Câble de couleur noire pour le rendre plus caché dans n'importe quel type d'installation.
Spécifications
| Models | 212502 | ||
| INSERT COMPOSITION. CONDUCTOR - BROWN | COPPER - DRILLED COPPER | ||
| Televés model | T-100 | ||
| Internal Explorer | Ø | mm | 1.13 |
| material | - | Copper | |
| Resistance | Ω / Km | 20 | |
| Dielectric | Ø | mm | 4.7 |
| material | - | expanded polyethylene | |
| Shield foil | Aluminum + Polyester + Aluminum | ||
| Braid | Resistance | Ω / Km | 27 |
| material | - | Tinned copper | |
| Fixing Ribbon | None | ||
| Sealing Gel | None | ||
| Shell | Ø | mm | 6.6 |
| color | - | black | |
| Material | - | PE | |
| Min. radius of bending | mm | 33 | |
| Shielding | dB | 75 | |
| Power | pF / m | 52 | |
| Usage type | Outdoor | ||
| Meters in coil | length / coil | m | 250 |
| Frequency attenuation (MHz) | 200 | dB / m | 0.08 |
| 500 | 0.13 | ||
| 800 | 0.16 | ||
| 1000 | 0.19 | ||
| 1350 | 0.22 | ||
| 1750 | 0.25 | ||
| 2050 | 0.28 | ||
| 2300 | 0.30 | ||
