Advanced ADV-ESMX-5202V - Advanced analogue control unit from 2 loops, Up to 240…

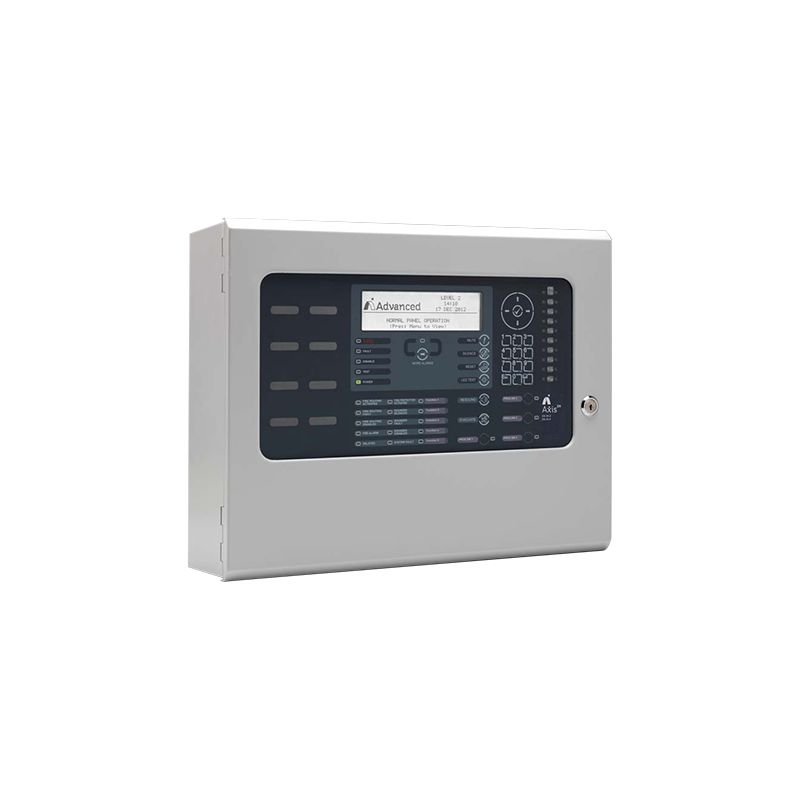

Advanced analogue control unit from 2 loops - Up to 240 devices per loop - Argus Protocol (compatible with Hochiki and Apollo) - Customizable LCD screen - Certificates EN54-2, EN54-4, EN54-13 and Part 2 and 4 by FM Approvals
€1,372.00
Tax included
Reference
ADV-ESMX-5202V
Brand
Advanced
Advanced ADV-ESMX-5202V - Advanced analogue control unit from 2 loops, Up to 240…
€1,372.00
- Advanced
- Central of 2 non-extendable loops
- Possibility of expansion through Ad-net network card (between exchanges and control stations)
- Multiprotocol compatible with Argus Vega, Apollo, Hochiki and Nittan Evolution (Argus Vega preinstalled, other protocols require firmware update)
- Up to 240 devices per loop
- Auto-addressing of devices
- Ad-Net peer-to-peer network capable of managing up to 2000 zones
- Programmable function buttons
- 2 siren outputs
- USB communication ports and RS232
- 20 LED for programmable zones
- Graphical LCD user interface and support for up to 200 default fire zones, enabling full compliance with the EN54 standard.
- Compatible with IP module (installed in network, 1 only module for the whole system)
- Removable terminals for hot extraction
- Quick-extraction main plate. Easy removal of PCB from the housing
- Rack mountable
- Customizable LCD logo
- Multi-language
- Certified EN 54-2:1997, EN 54-4:1997 and EN 54-13:2005 Certificate in EN54 Parts 2 and 4 by FM Approvals
Features
- Advanced analogue control unit from 2 loops
- Up to 240 devices per loop
- Argus Protocol (compatible with Hochiki and Apollo)
- Customizable LCD screen
- Certificates EN54-2, EN54-4, EN54-13 and Part 2 and 4 by FM Approvals
Specs
| Brand | Advanced |
| Core technology | Dual flash-based processors with real-time clock, diagnostics, programmable languages and character sets |
| Display | 240 x 64 white backlit LCD screen. |
| LED indicators | 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bicolor (fault and system) |
| Controls | Alphanumeric keypad that allows navigation, Reset, Mute buzzer, Mute sirens, Resonate, Evacuate and x4 programmable push-buttons |
| Protocols | Argus Vega (preinstalled), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution |
| Number of zones | 2000 (200 per panel) |
| Number of loops | 2 |
| Loop devices | 240 in Argus Vega protocol (pre-installed), in the others it depends on the protocol |
| Loop | 500mA |
| Siren outputs on plate | 2 x 1 Programmable Amp |
| Relay outputs on plate | 2 x 1 Amp 30v AC/DC programable(10mA, 5v min) - expandable to 4 |
| Programmable inputs | 1 x programmable supervised input in plate |
| Auxiliary output | 24V 500mA |
| Programmable key switch inputs | 8 x Free voltage input |
| Total output current available | 5A maximum available for loop current + siren outputs + auxiliary power |
| Main power supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Charger current | 2A with temperature compensation |
| Serial port interface | 1 x in plate, connection for PC RS232, modem, IP, or portable printer |
| USB interface | 1 x USB Type B for PC connection |
| Program | Keypad and LCD (built-in) or PC with Windows software |
| Event Buffer | 5000 for events and diagnosis + 500 fires |
| Networks | Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant) |
| Printer (optional) | In plate (only in the M, L, D boxes) |
| Box / Color | Steel IP30 / RAL7035 |
| Metalwork Options | Flush Mount Bezel, Battery Box, Special Utility Boxes, Termination Boxes and Rack Mount Profile |
| Dimensions (H x W x D mm) | Standard: 345 x 430 x 120 Large: 475 x 450 x 120 Big Deep: 475 x 450 x 190 |
| Cable entry (20mm knockouts) | Standard: 13 x above and 8 x below Large: 19 x above, 11 x rear and 2 x below Big Deep: 30 x above, 11 x rear and 3 x below |
| Battery capacity (Min - Max) | Standard: 24V 4Ah - 24V 7Ah Large: 24V 4Ah - 24V 18Ah Big Deep: 24V 4Ah - 24V 45Ah |
Package content
- Battery cables
- Supervision resistors
- Fuses
- Access keys
- Mounting brackets
Data sheet
- LED indicators
- 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bicolor (fault and system)
- Dimensions
- Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo - Number of zones
- 2000 (200 per panel)
- Display
- 240 x 64 white backlit LCD screen.
- Protocols
- Argus Vega (preinstalled), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution
- Tecnología de base
- Procesadores duales basados en flash con reloj en tiempo real, diagnóstico, lenguajes programables y conjuntos de caracteres
- Indicadores LED
- 22 rojos (1 x fuego, 1 x más alarmas, 20 x zonal programable), 1 verde (alimentación), 13 ámbar y 12 bicolor (falla y sistema)
- Controles
- Teclado alfanumérico que permite la navegación, Reseteo, Silenciar buzzer, Silenciar sirenas, Resonar, Evacuacion y x4 pulsadores programables
- Numero de lazos
- 2
- Dispositivos por lazo
- 240 en protocolo Argus Vega (preinstalado), en los demas depende del protocolo
- Lazo
- 500mA
- Salidas de sirena en placa
- 2 x 1 Amp programable
- Salidas de Rele en placa
- 2 x 1 Amp 30v AC/DC programable(10mA, 5v min) - expandible a 4
- Salida auxiliar
- 24V 500mA
- Entradas programables
- 1 x entrada supervisada programable en placa
- Entradas programables de interruptor de llave
- 8 x Entrada libre de tension
- Corriente de salida total disponible
- 5A máximo disponible para corriente de lazo + salidas de sirena + alimentación auxiliar
- Alimentacion principal
- 200 - 240v 47-63 Hz AC (+10%, -15% de tolerancia) 1.4A Max
- Corriente del cargador
- 2A con compensacion de temperatura
- Interfac puerto serie
- 1 x En placa, conexion para PC RS232, modem, IP, o impresora portatil
- Interfaz USB
- 1 x USB Tipo B para conexion de PC
- Programacion
- Teclado y LCD (incorporados) o PC con software de Windows
- Buffer de eventos
- 5000 para eventos y diagnóstico + 500 incendios
- Redes
- Tarjeta de red opcional (ADV-MXP-503 - estándar, o ADV-MXP-509 - tolerante a fallos)
- Impresora (opcional)
- En placa (sólo en las cajas M, L, D)
- Caja / Color
- Acero IP30 / RAL7035
- Opciones de metalistería
- Bisel de empotrar, caja para batería, Cajas para utilidades especiales, Cajas de terminación y Perfil de montaje en rack
