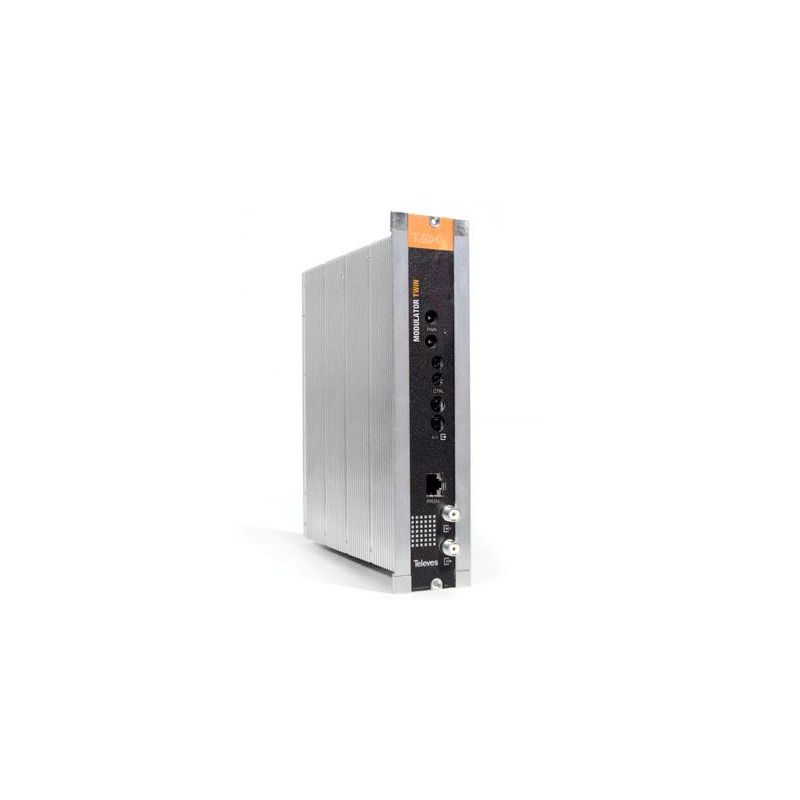

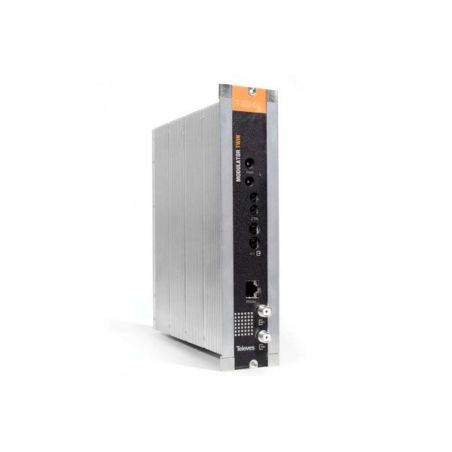

T.0X TWIN Stereo A/V-PAL Modulator that generates one or two analog channels from one/two Audio/Video signals. Televes 5806

€641.78

Tax included

Reference televes-5806

Brand Televes

€641.78

Modulator that generates one or two analog channels from one / two Audio / Video signals.

Features

Output in vestigial side band.
Elevated C/N.
High flatness
Configuration of video and audio parameters that allows adapting the signal to any standard.
9 Channel tables.
Generation of Test pattern.

Reference				5806
INPUT A/V	VIDEO	Input frequency	MHz	0.00005...5
		Input level	Vpp@75 Ω	1
		Depth of modulation	%	72.5 - 90	Programmable
		Differential gain	%	< 4
		Differential phase	º	< 4
		Delay luma / chroma	ns	< 100
		S / N ratio	dB	> 52
		Flatness	dB	< 1
	AUDIO	Input frequency	KHz	0.04 - 15
		Input level	dBm	-15...7	Programmable
		Impedance	Ω	10.000
		Pre-emphasis	μs	50
		Input level detour	dBm	-7...6	Programmable
		Modulation deviation	KHz	±11.5 - ±45	Programmable
		Distortion	%	< 1
		Flatness	dB	± 1

DEPARTURE MULTISTANDARD (PAL)	RF	Output frequency	MHz	47...862	Programmable
		Frequency intervals	KHz	250	Programmable
		Maximum output level	dBμV	80 ± 5 typ.
		Regulatory margin	dB	> 15	Programmable
		C/N@5MHz		> 56
		Passage losses		≤ 1.5
		Return losses		14 typ.
		Impedance	Ω	75

GENERAL		Feeding	Vdc	24
		Consumption	mA	300
		Protection index	IP	20
		Dimensones (Larg x Alt x Prof)	mm	50 x 216 x 175
