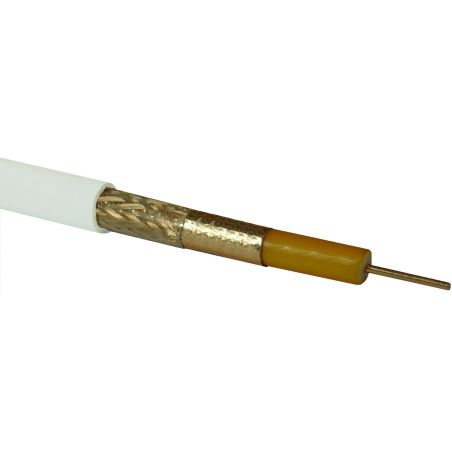

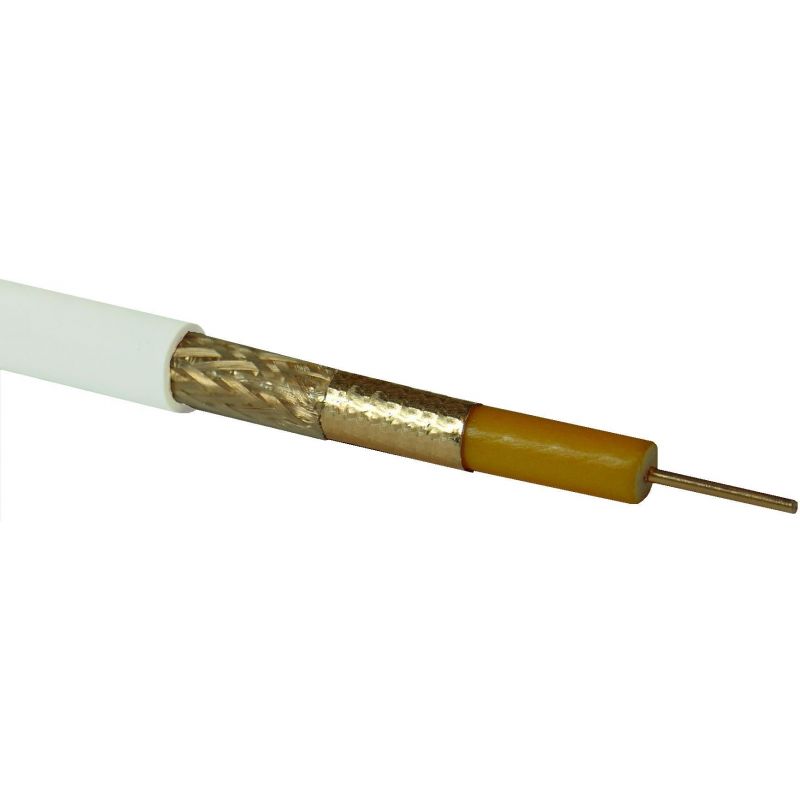

Cable Coaxial T200 Plus (Bobina 250m)
Cable Coax.T200+ CU/CU LSFH A GR.250m
1,56 €
Impuestos incluidos
Referencia
televes-213002
Marca
Televes
Cable Coaxial T200 Plus (Bobina 250m)
1,56 €
Cable Coax.T200+ CU/CU LSFH A GR.250m
Especificaciones
| Referencia | 213002 | ||
| Conductor interior - Composición malla | Cobre-Cobre | ||
| Modelo Televés | T-200 PLUS | ||
| Conductor interior | Ø | mm | 1.20 |
| Material | Cobre | ||
| Resistencia | ohm/Km | <16 | |
| Dieléctrico | Ø | mm | 5.0 |
| Material | Polietileno expanso | ||
| Lámina de apantallamiento | Composición | Cobre + Poliester | |
| Malla | Resistencia | ohm/Km | <12 |
| Material | Cobre | ||
| 2ª Lámina de apantallamiento | Composición | No | |
| Lámina antimigratoria | Si | ||
| Gel de estanqueidad | No | ||
| Cubierta exterior | Ø | mm | 6.9 |
| Color | gris (RAL7001) | ||
| Material | PVCLSFH | ||
| Radio de curvatura mínimo | mm | 34.5 | |
| Apantallamiento | dB | >85 (30-1000MHz) >75 (1-2GHz) >65 (2-3GHz) |
|
| Capacidad | pF/m | 55 | |
| Tipo de USO | Interior | ||
| Embalaje | metros/carrete | m | 250 |
| Atenuaciones | |||
| Frecuencia | 200 | MHz | 0.07 |
| 500 | 0.12 | ||
| 800 | 0.15 | ||
| 1000 | 0.17 | ||
| 1350 | 0.20 | ||
| 1750 | 0.23 | ||
| 2050 | 0.25 | ||
| 2300 | 0.27 | ||
