Plastic coil 100m Coaxial Cable CXT LSFH Dca 18RtC Ø 1.00/4.8/6.6mm White Televes

100m plastic spool. Live coaxial cable made of copper and copper-plated aluminum mesh (Cu/CCA), double-shielded. One 18RtC cable, with LSFH sheath. White

€448.31 €689.70 Save 35%
Tax included
Reference televes-213810
Brand Televes
Quantity
Out-of-Stock

Free shipping

100m plastic spool. Live coaxial cable made of copper and copper-plated aluminum mesh (Cu / CCA), double-shielded. One 18RtC cable, with LSFH sheath.

Stands out for

  • Internal conductor made of copper and copper-plated aluminum mesh
  • Euroclass Dca-s2, d2, a2

Main Features

  • LSFH exterior coverage in white
  • 75 ohm characteristic impedance
  • Available on reels of different footage

Specifications

Guy CXT
Standard EN 50117-2-4
Euroclass Dca
Euroclass: Emission of opaque fumes s2
Euroclass: Falling Flammable Particles d2
Euroclass: Acidity a2
Class B
Central Conductor Diameter mm one
Central Conductor Material Copper (Cu)
Central conductor resistance Ω / km <23
Dielectric Diameter mm 4.8
Dielectric Material Expanded Polyethylene (PEE)
Dielectric Color White RAL 9003
Inner foil Copper + Polyester
Mesh Material Aluminum + Copper
Mesh dimensions: number of yarns groups (Nc) 16
Mesh Dimensions: number of threads per group (Ns) 3
Mesh dimensions: wire diameter (Ø) mm 0.12
Mesh resistance Ω / km <35
Mesh coverage % 35
2nd shielding sheet No
2nd shielding sheet glued to the dielectric No
Petro-Gel No
Anti-migration sheet No
Outer cover diameter mm 6.6
Material Outer cover LSFH
Thickness Outer Cover mm 0.3
Minimum bend radius mm 33
Transfer impedance (5-30MHz) mΩ / m <50
1GHz shielding dB > 75
Spark Test Vac 3000
Capacity pF / m 55
Impedance Ω 75
Propagation velocity min. % 82
Operating temperature ° C -25 ... 70
Frequencies
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation (typ.) dB / m
0.01 0.05 0.05 0.06 0.09 0.14 0.16 0.18 0.19 0.19 0.2 0.22 0.24 0.28 0.3 0.31 0.3 0.31 0.33 0.36

Data sheet

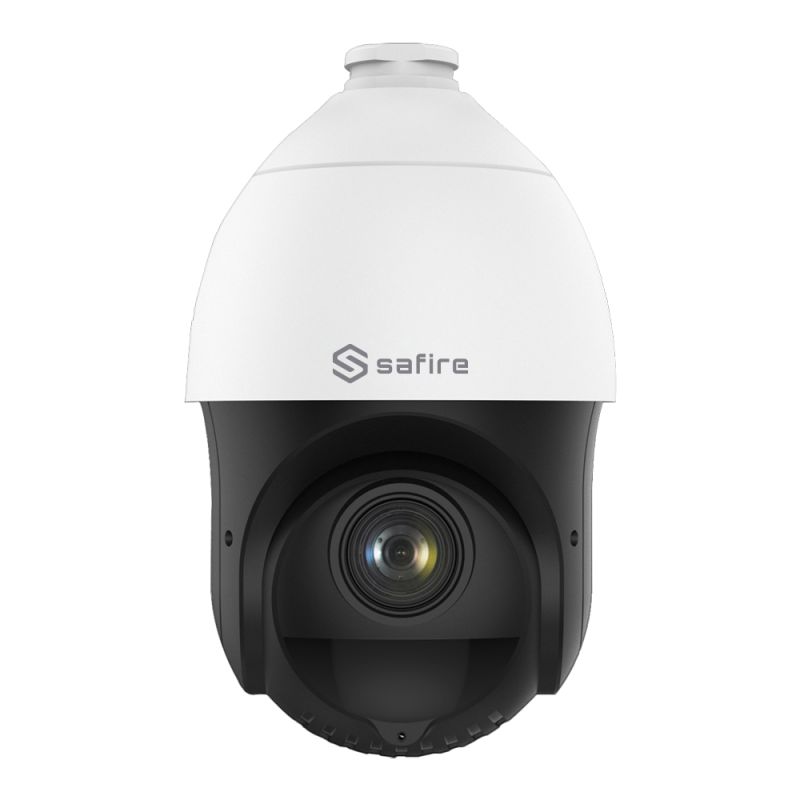

Power
DC 12 V / 1.5 A, PoE+ IEEE802.3at (Max. 24W)
Resolution
4 Megapixel (2560x1440)
Temp. operation
-30º C ~ +65º C
Degree of protection
IP66 / Surges 4000V
Audio
1 input (Line In) / 1 output (Line Out)
Length
305 m
Image sensor
1/2.8“ Progressive Scan CMOS
Minimum illumination
0.005 Lux (color) / 0.001 Lux (B/N)/ LEDs IR (100 m)
Lens
Varifocal 5~75 mm (Optical Zoom 15X)
Image improvements
BLC, HLC, DWDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~80°, Vertical: -15°~90° auto flip
Manual speed
Horizontal: 0.1° ~ 80°/sec, Vertical: 0.1° ~80°/s
Preset positions
300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Alarms
1 IN / 1 OUT
Internal memory
MicroSD card, Max 256 GB
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Compression
H.265+/ H.265 / H.264+/ H.264
Network interface
Ethernet 10 / 100 BaseT
Category
5E
Conductor
24AWG (0.5 mm)CCA sólido(23% Cobre con núcleo de aluminio) x 8C
Diameter
5.0 mm
Cover colour
Grey
Video analysis
VCA: Tripwire | Area intrusion | Audio exception
Interoperability
ONVIF, PSIA, CGI
Digital zoom
16X
Electronic shutter
1/1s~1/10,000s
Speed between Presets
Horizontal: 80° /s, Vertical: 80° /s
PTZ Control
Through network access
Advanced functions
TrueSense with false alarm filtering for vehicles and people | Line Crossing | Intrusion
Dimensions (without bracket)
290 mm (H) x 165 (Ø) mm
Weight (without bracket)
2000 g
